Air Systems Fume-Air 230 Portable Fume Extractor - 230 CFM - PFE-230

Designed for light Duty, Short Duration Welding

Air Systems' small HEPA filtered portable fume extractor, Model PFE-230, provides 230cfm flow through a 5" hood and magnetic base stand. Ideal for many small welding and soldering applications where large cabinet style fume extractors are not practical, such as, spot or bench top welding. The PFE-230 features removable slag tray, spark screen, 3 pleated pre-filters and a final HEPA filter (99.97% at 0.3 micron).

  • 2 each, 115 VAC, 800 watt vacuum motors with 15 amp overload protector
  • Final stage HEPA filter, 99.97% at 0.3 micron
  • 70dbA noise level at 3 feet w/ built-in noise suppressor
  • 230cfm flow rate - variable speed
  • Fire retardant, 10 ft. flexible hose
  • Dual handle assembly
  • Three pleated intermediate filters 2.5" ID hose supplied with 2.5" hose coupler for adding additional hose
  • 5" fume capture hood with magnetic base stand supplied
  • 5-stage filtration
  • Stainless steel spark screen
  • Removable slag tray
  • Size: 28.5" L x 15" H x 18.5" W
  • Weight 57 lbs.




5-Stage Filtration with Slag Tray

5-Stage Filter Assembly

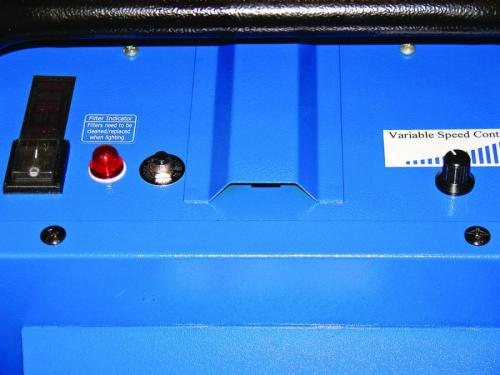

Variable speed Switch and Control Panel
