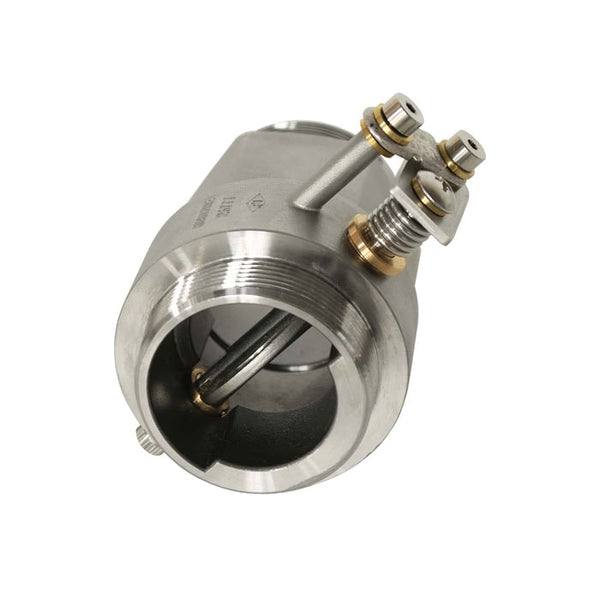

Justrite Safe-T-Vent Thermally-Actuated Damper For Venting Cabinets - 2" Connection - 25777

Safe-T-Vent Thermally-Actuated Damper for venting cabinets, 2" connection Safe-T-Vent Thermally-Actuated Cabinet Damper helps achieve ventilation without sacrificing cabinet integrity.

Safe-T-Vent Thermally-Actuated Cabinet Damper helps achieve ventilation without sacrificing cabinet integrity. Proper ventilation of hazardous fumes is essential for the health and safety of employees. FM-approved for use in conjunction with a Justrite safety cabinet - Safe-T-Vent is a safe - reliable - and compliant way to ventilate a safety cabinet and still maintain the cabinet’s performance in a fire.The patented Safe-T-Vent connects a properly designed venting system to a Justrite cabinet. It features a fusible link that melts and closes the valve plate in the event of a fire. It protects the cabinet and its contents by stopping the flow of air through the cabinet vents.

Applications:

Suitable for flammable liquid or hazardous material safety cabinets -when storing flammable liquids - pesticides - acids - corrosives or other hazardous materials.

Please consult your professional engineer as part of the ventilation system design process.

Helps achieve safety cabinet ventilation without sacrificing cabinet integrity
Use on any Justrite manual or self-close safety cabinet that accepts 2" NPT threads
Fusible link melts at 165F, allowing the spring tensioner to close the damper valve and stop the flow of air through the cabinet
Heavy-duty body and valve plate design reduces external to internal heat transfer
Reversible design blocks ventilation's flow in either direction
Stainless steel body and valve design provide frictional spark resistance as required for hazardous locations
Corrosion resistant to many harsh chemicals for increased flexibility across many applications
Brass bushings and washers at pivot locations reduce friction and ensure reliable valve actuation
Each cabinet uses two dampers, one for fresh air intake, one for exhaust to the outdoors
Install with 2" nominal NPT Schedule 40 steel pipe to match cabinet vents, providing non-combustible ducting and proper management of static
FM Approved, to use in conjuction with a Justrite safety cabinet
Please consult your professional engineer as part of the ventilation system design process

Product Specs

Item No (domestic catalog)	25777
Family	SAFETY & STORAGE CABINETS
Category	Accessories for Safety Cabinets
Class	Cabinet Ventilation
Material Specifications	Stainless Steel
Height - Inches	3.5
Width - Inches	5.25
Depth - Inches	5.25

Approvals/Certifications

FM Approval	yes
NFPA 30	yes

Justrite Safe-T-Vent Thermally-Actuated Damper For Venting Cabinets - 2" Connection - 25777

Manufacturer Part #: 25777

Shipping Weight: 3.6 lbs

UPC #: 697841229723
