FallTech

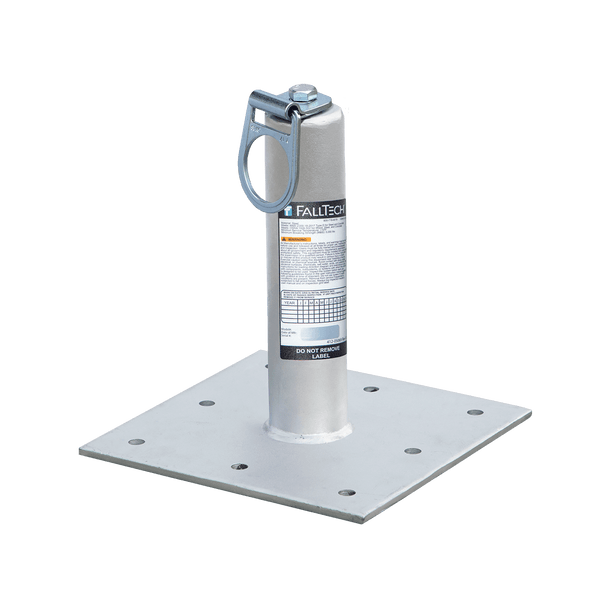

FallTech 18" Post Anchor with Swivel D-ring for Concrete and Steel - 78218CSSD
- SKU:
- 365A-78218CSSD
- UPC:
- 848013089120
- MPN:
- 78218CSSD
- Availability:
- Call or Email for Availability!
- Shipping:
- Calculated at Checkout
Description
FallTech 18" Post Anchor with Swivel D-ring for Concrete and Steel - 78218CSSD
Applications:
- Features 360° swivel D-ring for improved working range and freedom of movement
- Welded galvanized steel post and plate construction.
- 12" x 12" x 1/2" base plate provides durable permanent installation to concrete and steel structures
- Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
- Plated alloy steel D-ring with plated stainless steel bracket
- Requires user-supplied fasteners for installation
- Complies with ANSI Z359.18-2017
Product Specs:
Family Group | Roofing Anchorage |
ANSI | ANSI Compliant |
OSHA | OSHA Compliant |
Performance Detail:
Static Strength | 5,000 lb min. |
ANSI User Capacity | 130 to 310 lb max. |
OSHA User Capacity | 130 to 310 lb max. |
Material Specs:
Post Anchor | Galvanized carbon steel |
D-ring | Plated alloy steel; 5,000 lbs min. static strength |
D-ring Bracket | Stainless steel |
