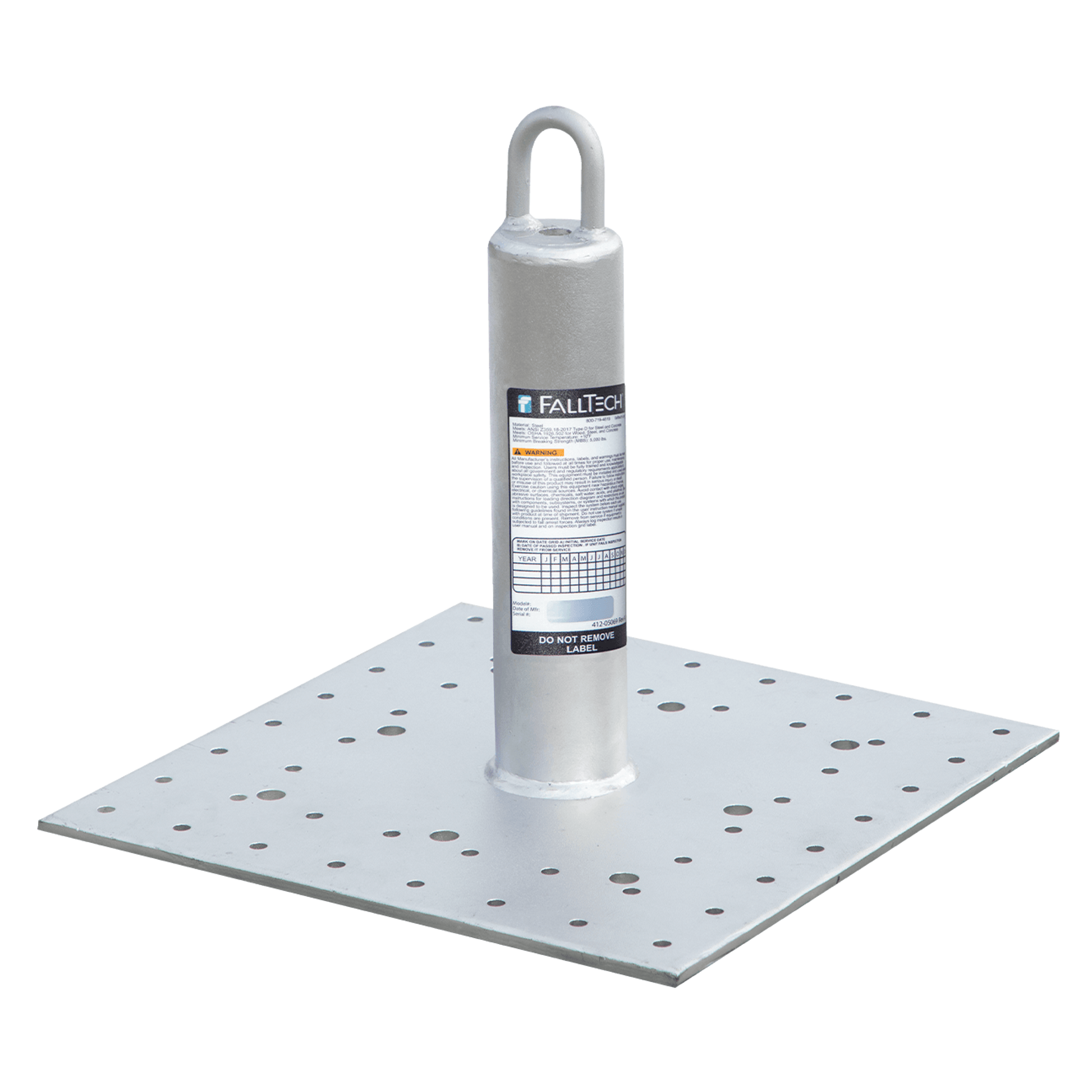

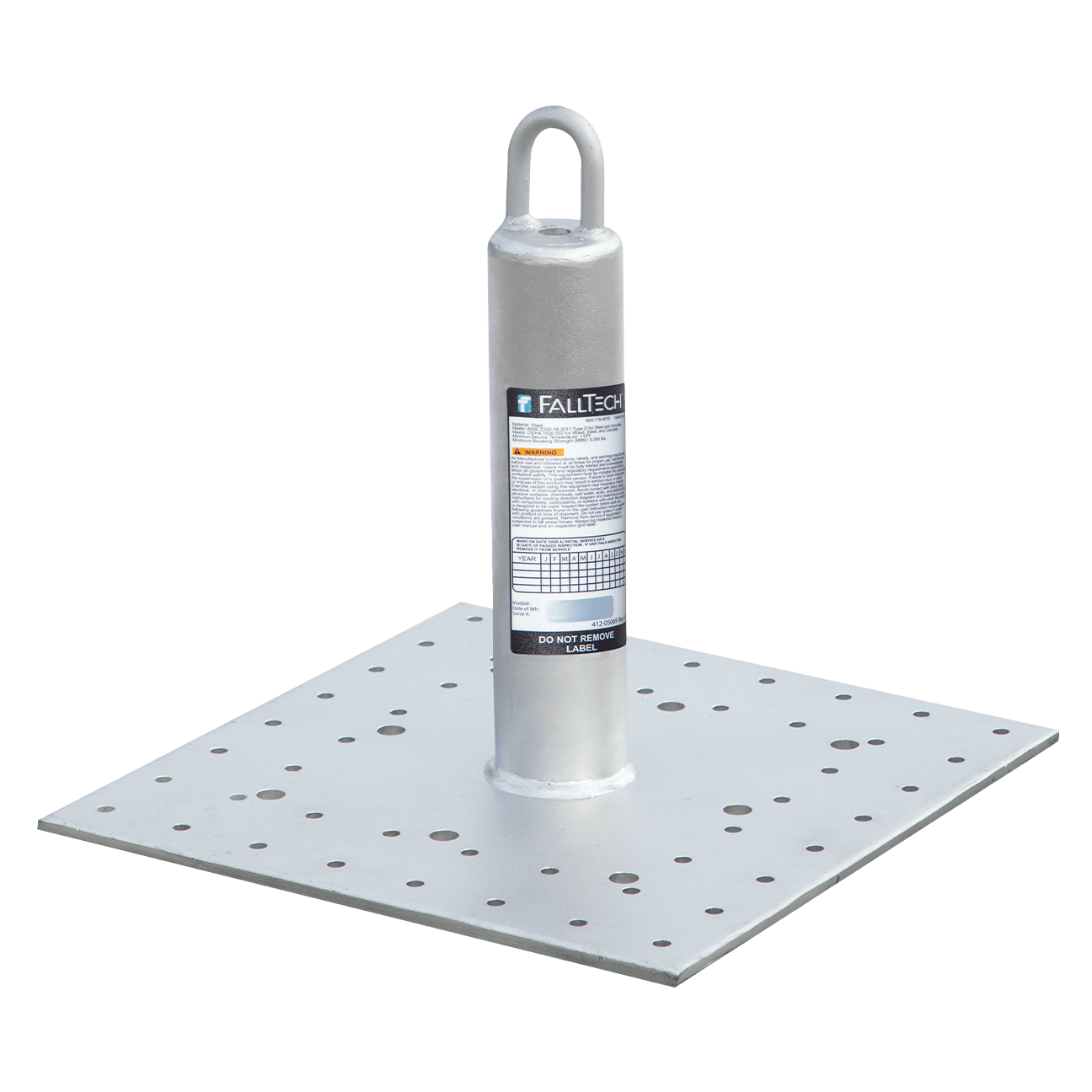

FallTech 18" Post Anchor with Welded-eye for Wood Concrete and Steel - 78218WCSWE

FallTech 18" Post Anchor with Welded-eye for Wood Concrete and Steel - 78218WCSWE

Regular price
Sale price $420.80 Regular price $525.99

FallTech 18" Post Anchor with Welded-eye for Wood Concrete and Steel - 78218WCSWE

Applications:

  • Features fixed-position welded-eye connection for user's preferred fall arrest components
  • Welded galvanized steel post and plate construction.
  • 16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures
  • Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
  • Features 1-1/4" x 2" welded eye
  • Requires user-supplied fasteners for installation
  • Complies with ANSI Z359.18-2017

Product Specs:

Family Group Roofing Anchorage
ANSI ANSI Compliant
OSHA OSHA Compliant

Performance Detail:

Static Strength 5,000 lb min.
ANSI User Capacity 130 to 310 lb max.
OSHA User Capacity 130 to 310 lb max.

Material Specs:

Post Anchor Galvanized carbon steel

MFG Part #: 78218WCSWE

UPC#: 848013072306
