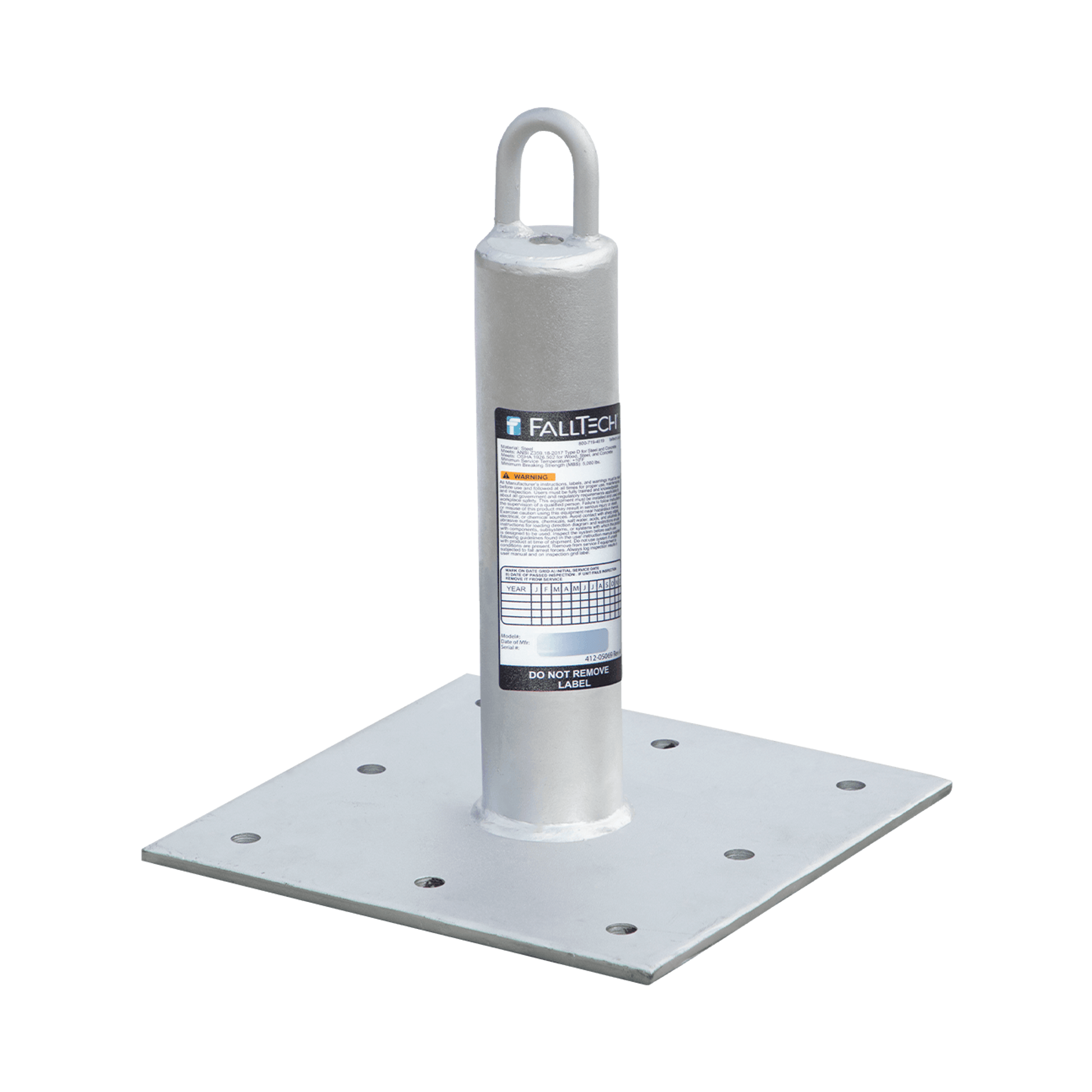

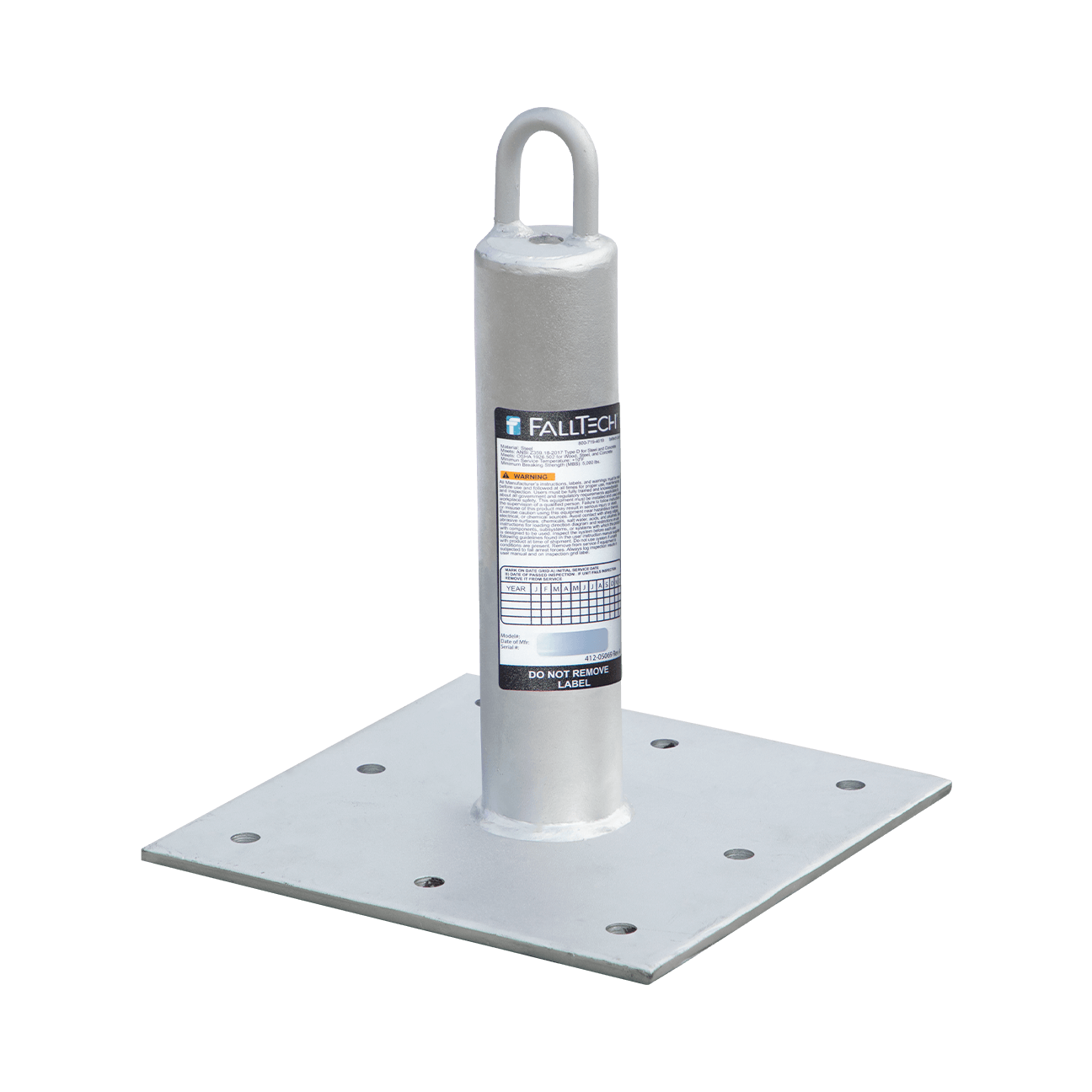

FallTech Post Anchor with Welded-eye for Concrete and Steel - 78012CSWE

FallTech Post Anchor with Welded-eye for Concrete and Steel - 78012CSWE

Regular price
Sale price $341.20 Regular price $426.99

FallTech Post Anchor with Welded-eye for Concrete and Steel - 78012CSWE

Details:

  • Features fixed-position welded-eye connection for user's preferred fall arrest components
  • Welded galvanized steel post and plate construction.
  • 12" x 12" x 1/2" base plate provides durable permanent installation to concrete and steel structures
  • Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
  • Features 1-1/4" x 2" welded eye
  • Requires user-supplied fasteners for installation
  • Complies with ANSI Z359.18-2017
  • With welded-eye

Product Specs:

Family Group Roofing Anchorage
Product Type Post anchor for concrete and steel
Approval Standard 1 ANSI Z359.18-2017
Approval Standard 2 OSHA 1926.502
Category Roofing

Performance Detail:

Static Strength 5,000 lb min.
ANSI User Capacity 130 to 310 lb max.
OSHA User Capacity 130 to 310 lb max.

Material Specs:

Post Anchor Galvanized carbon steel

MFG Part #: 78012CSWE

UPC: 848013046949
