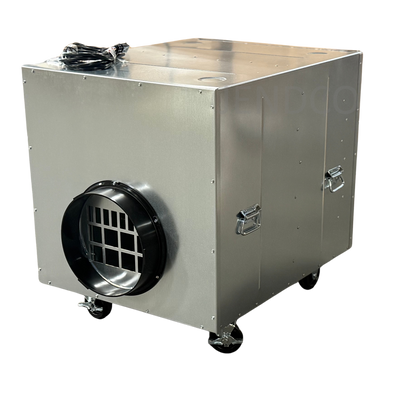

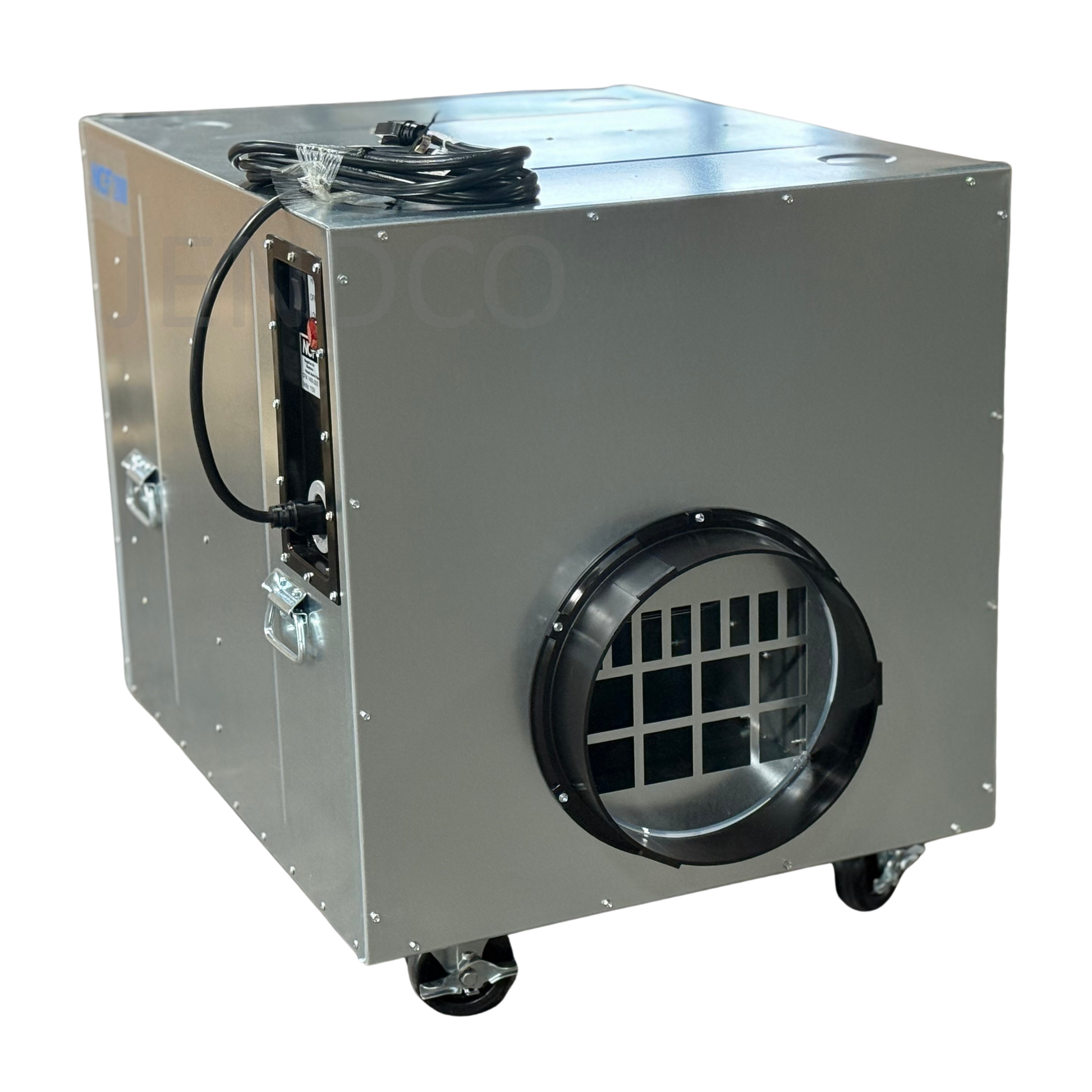

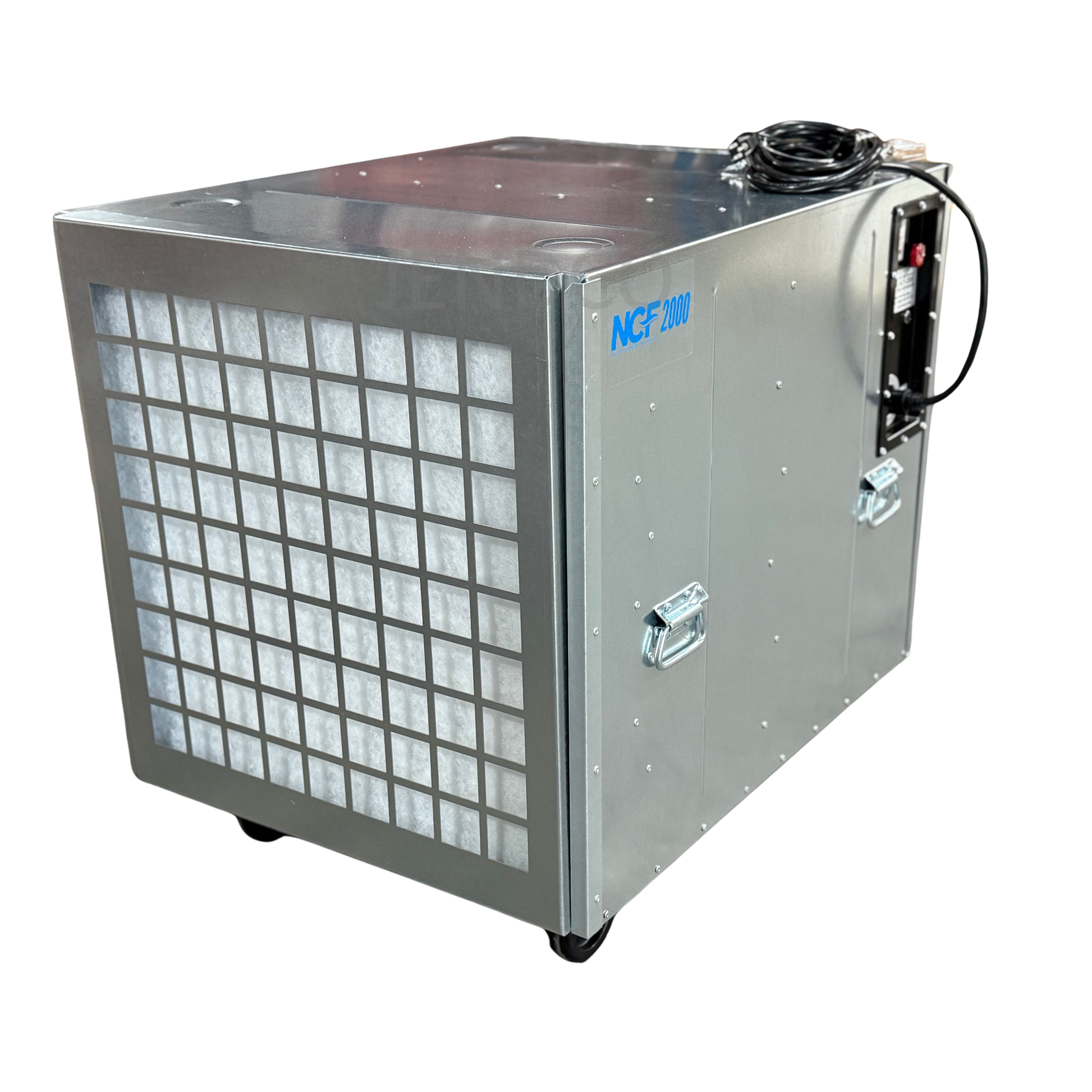

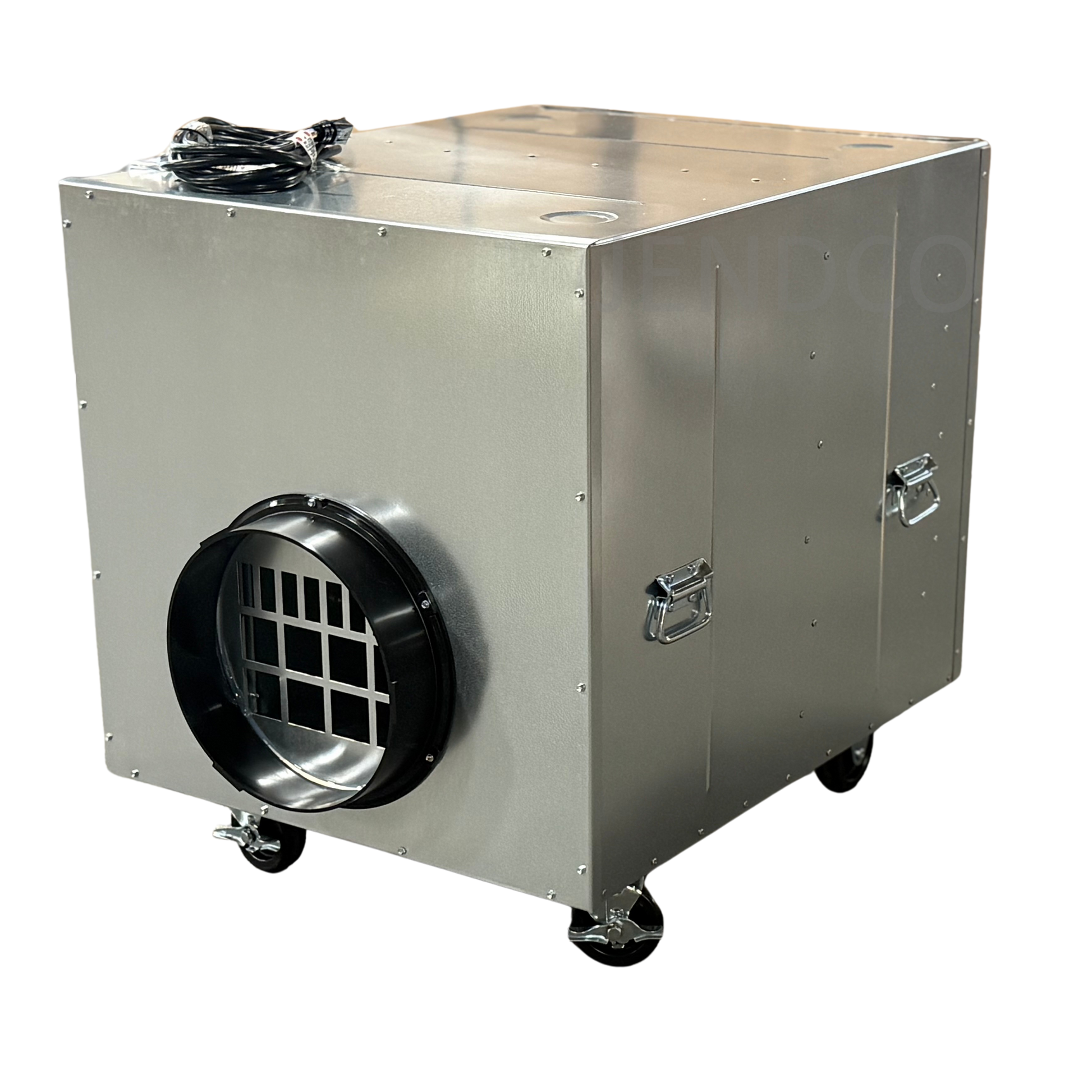

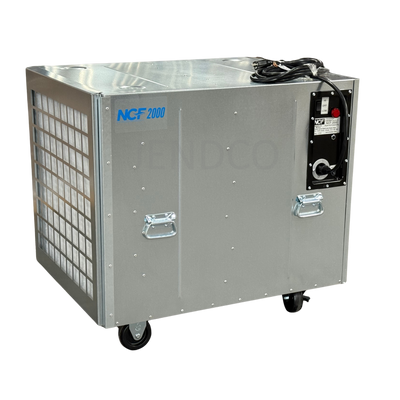

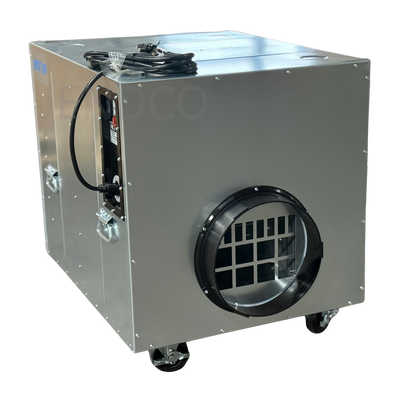

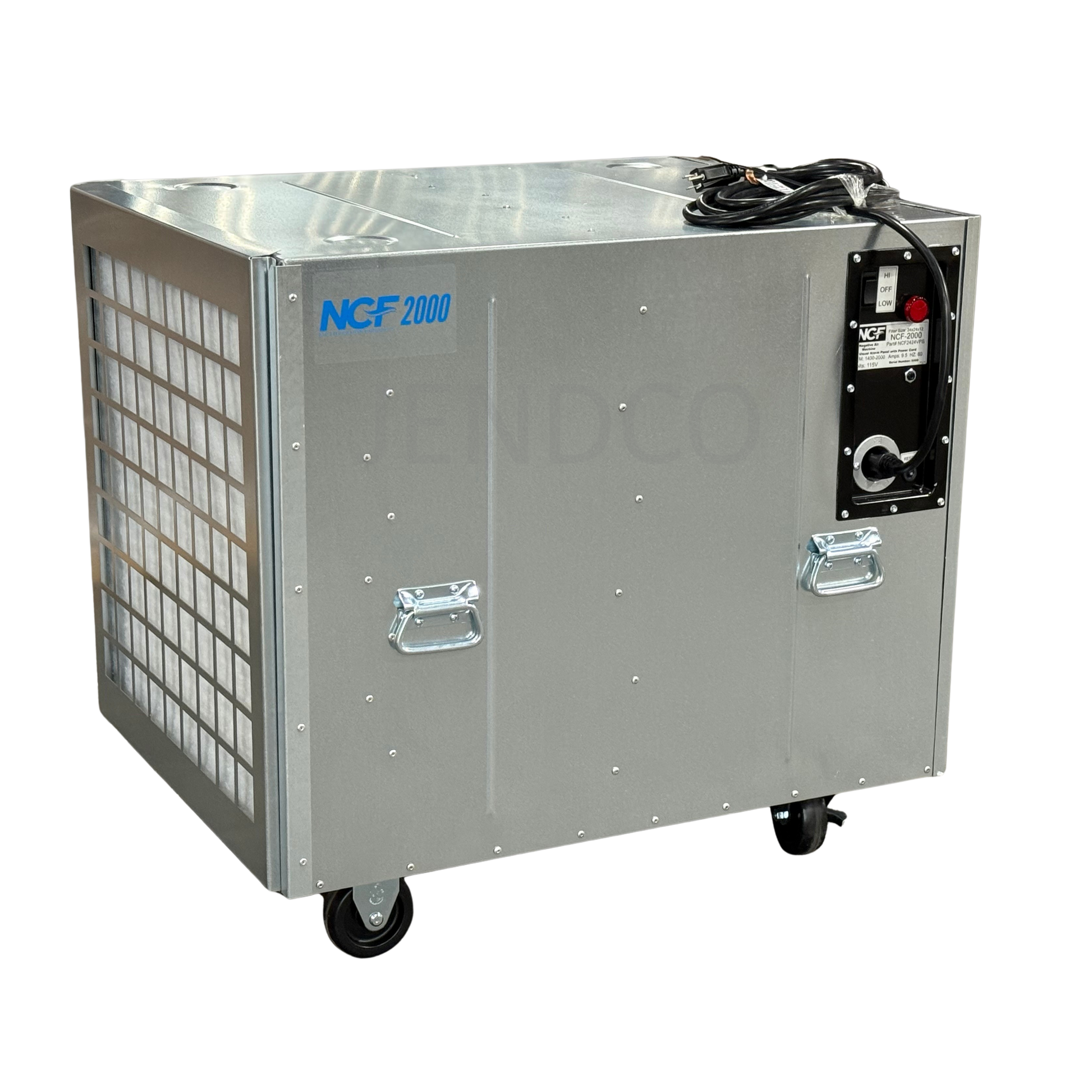

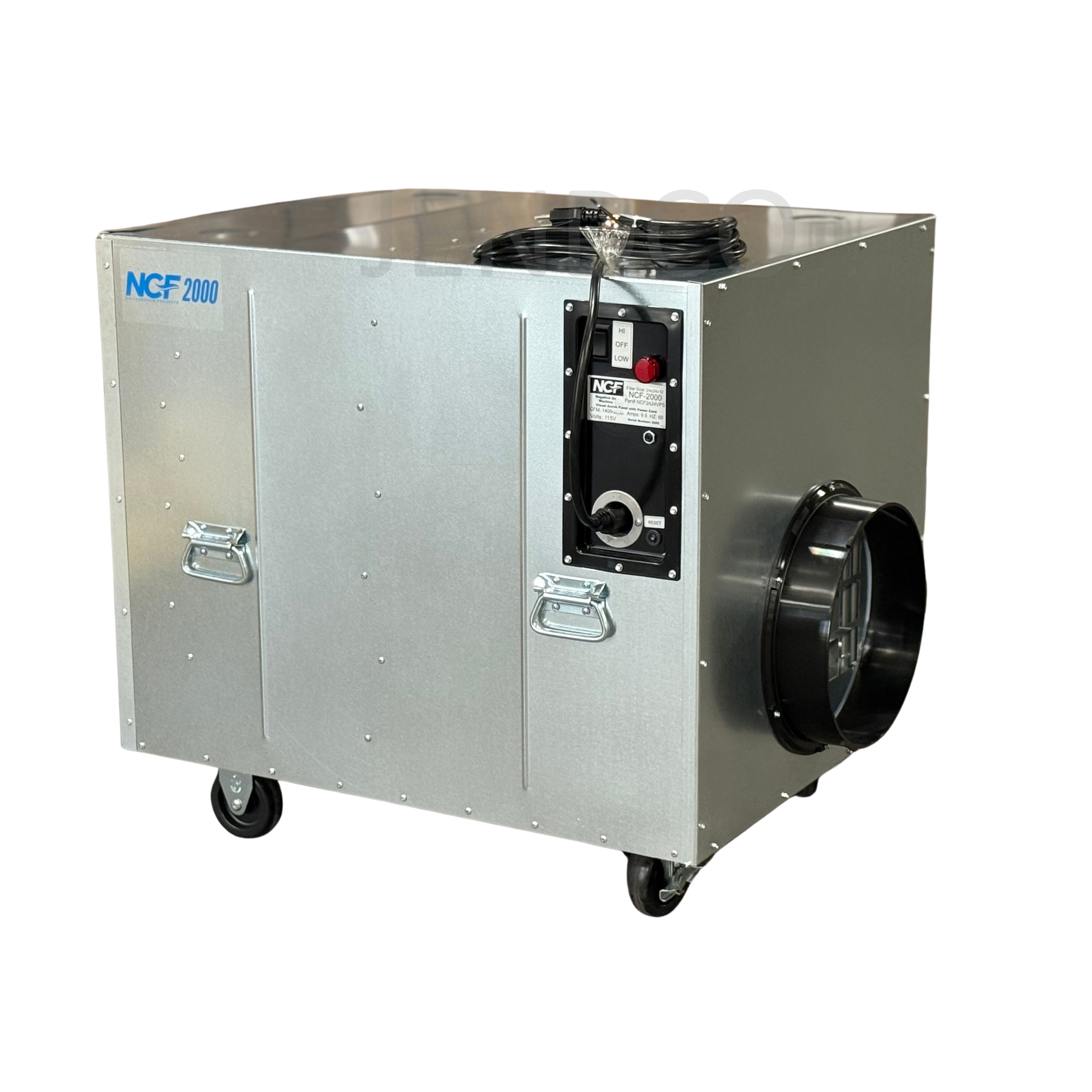

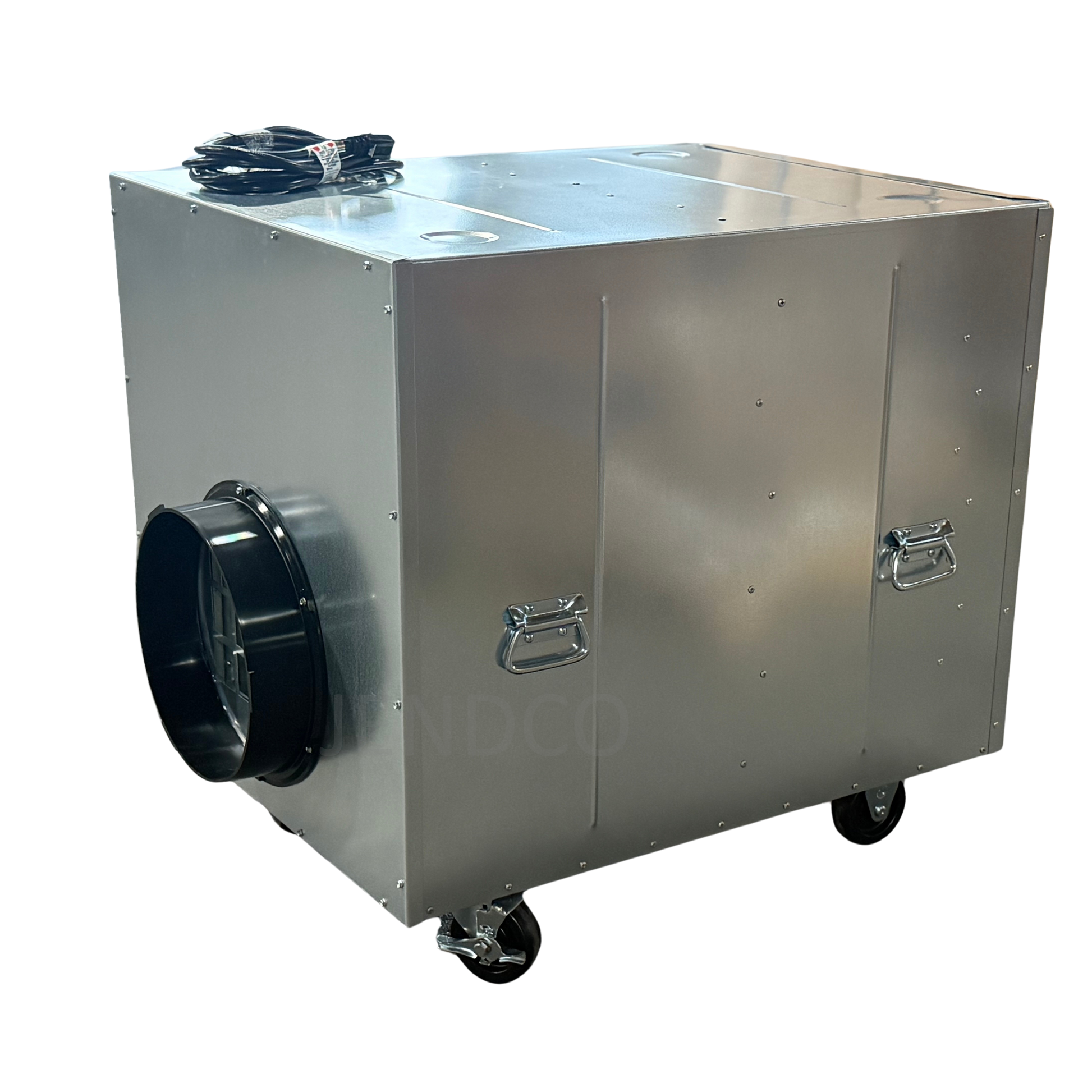

NCF-2000 Negative Air Machine with Visual Alarm Panel (1400/2000 CFM) - 2424VPS

Engineered for high-efficiency air purification, the NCF2000 Negative Air Machine delivers powerful, portable air filtration for indoor environments requiring airborne particulate control. With its durable galvanized steel housing and three-stage filtration system—including a certified 99.97% HEPA filter—the NCF2000 is ideal for abatement, construction, healthcare, and environmental remediation applications.

Key Features:

• Three-Stage Filtration: Pre-filter pad, ring panel, and true HEPA filter to remove particles down to 0.3 microns.
• High CFM Output: Two-speed motor delivers airflow of 1400 to 1950 CFM.
• Portability Built-In: Equipped with four handles and four rolling casters (including locking brakes).
• Durable Design: Galvanized steel housing ensures long-term durability and protection.
• Filter Monitoring Options: Choose from Economy Gauge, Visual, or Full Feature instrument panels with pressure gauges, filter alarms, and more.
• Easy Maintenance: Tool-free access to filters and components for simple service and replacement.

Performance Specifications:

Power	115V, 60Hz, 9.5 Amps
Motor	1.0 HP (Thermally Protected)
Airflow (CFM)	1400 (Low) / 1950 (High)
Filter Sizes	Pre-filter: 24"x24"x1" | Ring Panel: 24"x24"x1" | HEPA: 24"x24"x11.5"
Unit Dimensions	26" W x 26" H x 32.25" L
Weight	131 lbs
Exhaust Port	12" Diameter

Product Options:

• Visual Panel: Adds light/alarm for filter replacement indication.
• High/Low Power Switch
• Circuit Breaker (Reset button)
• Inlet Flange

Safety & Compliance:

• HEPA Filter Requirement: Unit must not be operated without a certified HEPA filter installed.
• Contaminant Handling: Used filters must be treated as hazardous waste per local regulations.
• Maintenance Personnel: Must wear approved respirators and protective gear when servicing.

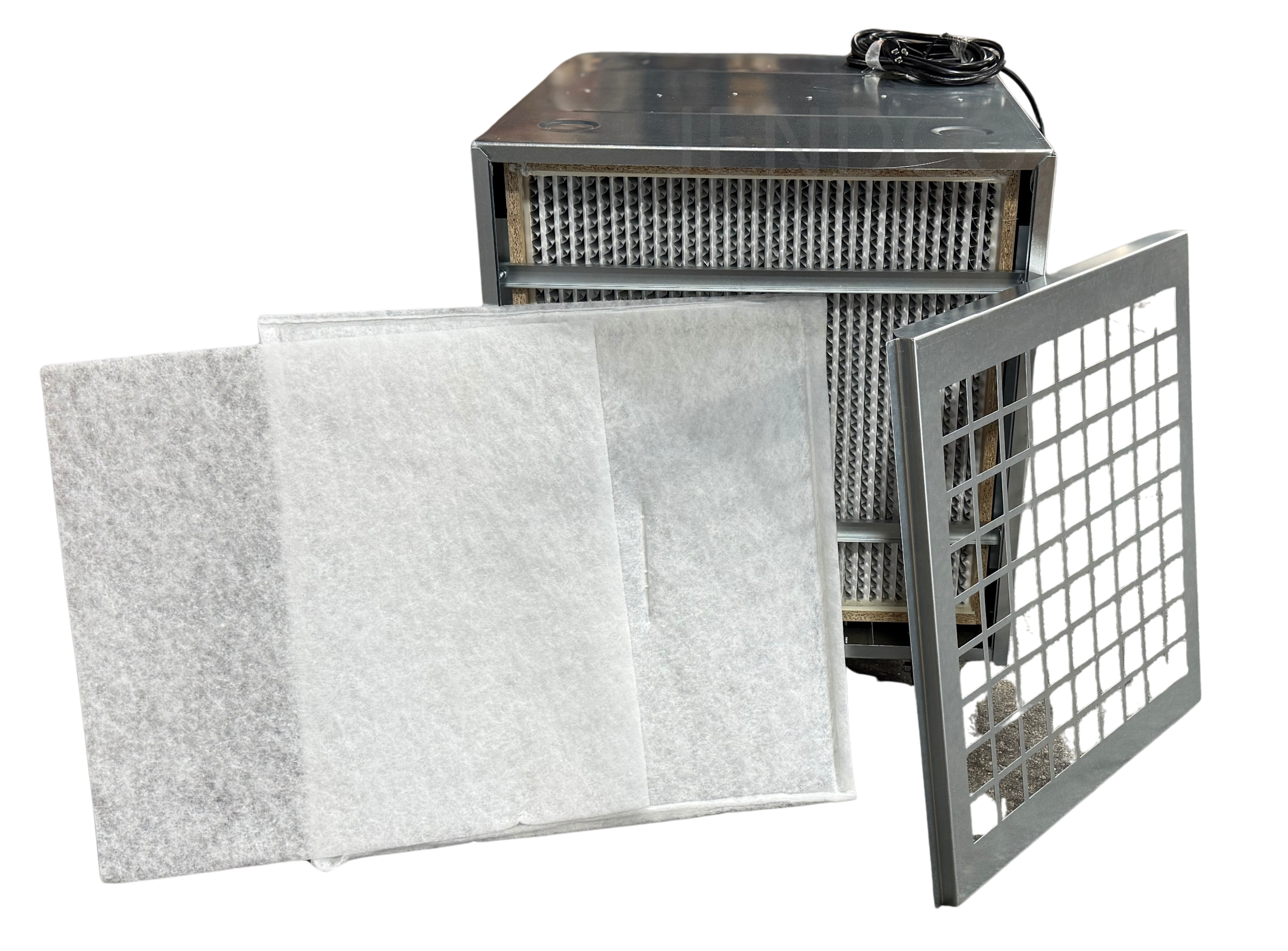

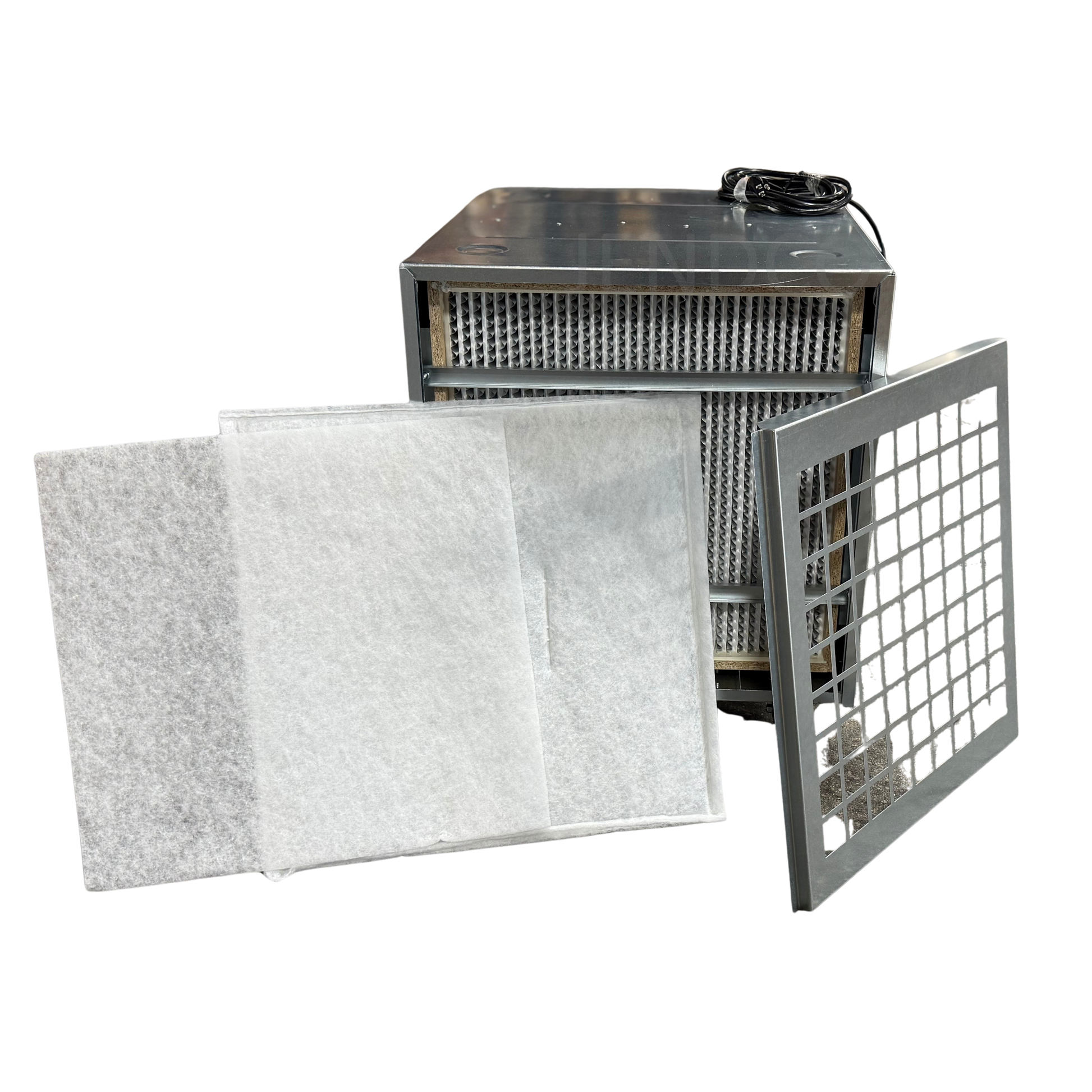

Filters Included:

24” x 24” x 1” — 1-Ply Pre-Filter Pad (First Stage) - 1/Each

The 24” x 24” x 1” 1-Ply Pre-Filter Pad is designed as the first line of defense in your air filtration system. Engineered to capture and remove large airborne particles (10 microns and larger), this economical pre-filter helps extend the lifespan and efficiency of your secondary and HEPA filters.

24” x 24” x 1” — 2-Ply Ring Panel Filter (Second Stage) - 1/Each

The 24” x 24” x 1” 2-Ply Ring Panel serves as the second stage in a multi-layered air filtration system. Positioned after the pre-filter, this durable ring panel is specifically designed to capture particles as small as 1 micron, significantly enhancing air quality while shielding the high-efficiency HEPA filter from premature clogging and wear.

24" x 24" x 11.5" - 99.97% Effecient Wood Frame HEPA Filter (Third Stage) - 1/Each

Engineered for maximum efficiency, the 24” x 24” x 11.5” Wood Frame HEPA Filter serves as the final and most critical stage in advanced air filtration systems. Designed to capture ultra-fine particles down to 0.3 microns, this third-stage HEPA filter provides 99.97% filtration efficiency, ensuring the air leaving your unit is exceptionally clean and contaminant-free.

This high-capacity HEPA filter is built with a sturdy wood frame for durability and consistent performance in demanding environments such as mold remediation, asbestos abatement, construction, and healthcare settings. Its ultra-fine filtration media traps microscopic particles like mold spores, bacteria, and fine dust, offering superior protection for both workers and occupants.

Primary Filter - 1st Stage
24"x24" Pad Filter 50/case
Secondary Filter - 2nd Stage
24"x24" Ring Panel Filter 24/cs		24"x24" Pleated Filter		24"x24"x2" Pleated Carbon Filter
3rd Stage (HEPA Filter)
Abatement Technologies 24"x24"x6" 99.97% HEPA Filter - H242406-99			24"x24"x12" Negative Air Machine HEPA Filter - Wood Frame
Clear Flex Duct 12" x 25'		Layflat Duct 12"x500' - 1 Roll		H2000 INLET MANIFOLD 12"
12" Locking Clamp for Flex Duct Attachment

Unit Set Up & Start Up

1. The unit is to be operated away from doorways or other make-up air sources. Properly set up the exhaust and seal off any opening. Do not exhaust into uncontaminated or occupied areas.
2. Before powering the unit on:
• ‣Lock the two rolling casters to keep the machine in place
• Confirm the rocker switch is in the off position
• Plug in the power supply cord
3. To start the machine, select the speed by pressing the top for high and the bottom for low.

Warranty:

Backed by a 1-year limited warranty from NC Filtration. Coverage includes defects in materials and workmanship. RMA required for returns.
