3M DBI-SALA

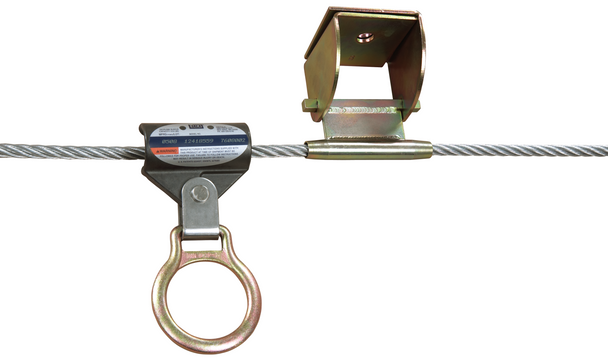

3M DBI-SALA Permanent 60 ft. Multi-Span Horizontal Lifeline System - Stainless Steel Cable - 7603076
- SKU:
- 365HL-7603076
- UPC:
- 840779096367
- MPN:
- 7603076
- Condition:
- New
- Availability:
- Call or Email for Availability!
- Shipping:
- Calculated at Checkout
Description
3M DBI-SALA Permanent Multi-Span Horizontal Lifeline System - Stainless Steel Cable - 60 ft - 7603076
3M DBI-SALA Permanent Multi-Span Cable Horizontal Lifeline System comes is multiple lengths available--all include one intermediate bracket, tensioner, mounting hardware and metal energy absorbers.
The multi span system is a simple and safe off the shelf permanent horizontal lifeline designed for user installation. It is customizable, including span length, total system length and even final installation position. The brackets are specifically designed so the system may be installed above, even with, or below the user. We offer a broad selection, as well as significant features in safety and productivity. A horizontal lifeline may appear to be a basic line strung between two anchors, but it is much more complex. It is critical to choose a system that has been precision engineered and tested to meet regulations. These systems are used to protect workers operating in the horizontal plane who may not have continuous access to suitable anchorage points.
- Available in galvanized and stainless steel 3/8 in. (9.5 mm) 7x19
- Available in multiple lengths with many system components
- Customizable multi-span configurations
- Equipped with RFID
- Flexible system capacity
- Metal energy absorber limits fall arrest forces
- Off the shelf permanent multi-span horizontal system designed for user installation
- Sleeve provides hands-free operation (order model 7608002 separately)
Material Specifications
| Brand | DBI-SALA |
| Install Type | Temporary/Portable |
| Lifeline Length (Imperial) | 60.0 ft |
| Lifeline Length (Metric) | 18.28 m |
| Lifeline Material | Stainless Steel Cable |
| Maximum Number of Workers | 2 |
| Overall Length (Imperial) | 60.0 ft |
| Product Number | 7603076 |
| Product Type | Permanent Multi-span Horizontal Lifeline System |
| Recommended Industry | General Industrial |
| Span Type | Multi-Span |
| Specifications Met | OSHA 1910.140 OSHA 1926.502 |
| Trademark 1 | 3M |
| Trademark 2 | DBI-SALA |
| Weight (Imperial) | 32.0 lb |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 310.0 lb |
| Weight Capacity (Metric) | 141.0 kg |
