Husqvarna
Husqvarna CS 2512 Wire Saw - 965156201
- SKU:
- 406-HUSQ965156201
- UPC:
- 7391883152188
- MPN:
- 965156201
- Condition:
- New
- Availability:
- Call or Email for Availability!
- Shipping:
- Calculated at Checkout
Call or Email for Availability!
Frequently bought together:
Description

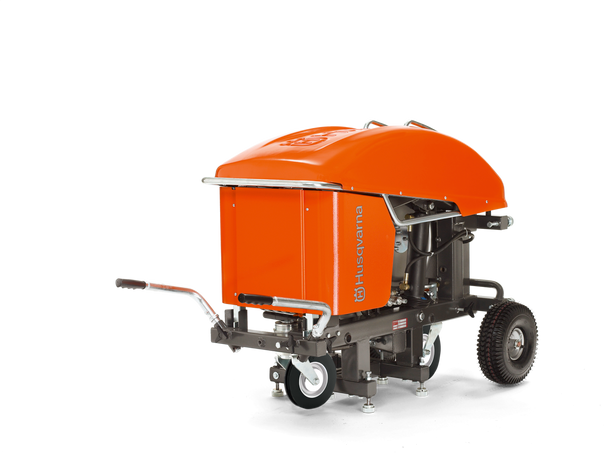

CS 2512 Wire Saw – 965156201
WIRE SAW CS 2512 Wiresaw
CS 2512, in combination with the hydraulic unit PP 455 E, is a powerful and easy to use wire saw. It is compact and mobile to handle smaller jobs but can also handle very large, deep sawing jobs. It can be used for a wide range of applications, both on the ground or mounted on walls. Use it for sawing in steel, concrete and other building materials.
- Large wire magazine - Although the wire saw is compact it has a large magazine capacity, enabling larger cuts without cutting the wire.
- Flexible setup - Thanks to modular systems, the wire saws are easy to install. They can be positioned both vertically and horizontally. The motor can be detached for easier transportation.
- Easy transportation - Practical collapsible handles and foldable guard allow easy transportation of the unit. The saw can also be dismantled into sections, which further increases mobility.
- Smooth cutting - The pulleys follow the direction of the wire automatically thanks to the ball bearing turning mechanism.
- Tightened wire in the magazine - The drive wheel is located on the output side of the machine so even when the feeding power is low slack in the wire never occurs in the magazine.
- Easy to control wire tension - The adjustable pressure valve provides accurate control of the sawing operation and superior performance.
- Larger jobs - Wire sawing for jobs such as foundations and bridges.
- Thick walls - Cutting in thick walls and openings with precise corners.
- Confined spaces - Deep wire sawing in confined spaces.
| Article ID | 965156201 |
| Category | Husqvarna/Wire Saws/Tools/Wire Saws |
| Article gross weight | 235000 g |
| Article gross weight (Calc) | 518.086 lbs |
| Direction of rotation | One direction |
| Hydraulic oil flow (gal/min) | 17 gal/min |
| Hydraulic oil flow (liter/min) | 65 l/min |
| Hydraulic pressure - max (bar) | 230 bar |
| Hydraulic pressure - max (psi) | 3300 psi |
| Motor for wire drive | Hydraulic multiple gear |
| Net wire storage capacity | 16 m |
| Net wire storage capacity | 52 ft |
| Output power with PP 455 | 20 kW |
| Output power with PP 455 | 27 hp |
| Packaging height (mm) | 900 mm |
| Packaging height (In) | 35.433 in |
| Packaging length (mm) | 1100 mm |
| Packaging length (in) | 43.307 in |
| Packaging width (mm) | 750 mm |
| Packaging width (in) | 29.528 in |
| Power source | Hydraulic |
| Product size height (in) | 48 in |
| Product size height (mm) | 1200 mm |
| Product size length (in) | 48 in |
| Product size length (mm) | 1200 mm |
| Product size width (mm) | 800 mm |
| Product size width (in) | 32 in |
| Sound power level - guaranteed (LWA) | 95 dB(A) |
| Sound power level - measured | 94 dB(A) |
| Sound pressure level at operators ear (LpA) | 83 dB(A) |
| Spindle starting torque | 190 |
| Weight | 190 lbs |
| Weight (complete product w/o side packed articles) | 150 kg |
| Wire configuration in drive unit - min | 3.4 m |
| Wire configuration in drive unit - min | 12 ft |
| Wire speed gear 1 - max | 20 m/s |
| Wire speed gear 1 - max | 65 ft/s |
| Wire speed gear 2 - max | 25 m/s |
| Wire speed gear 2 - max | 82 ft/s |
