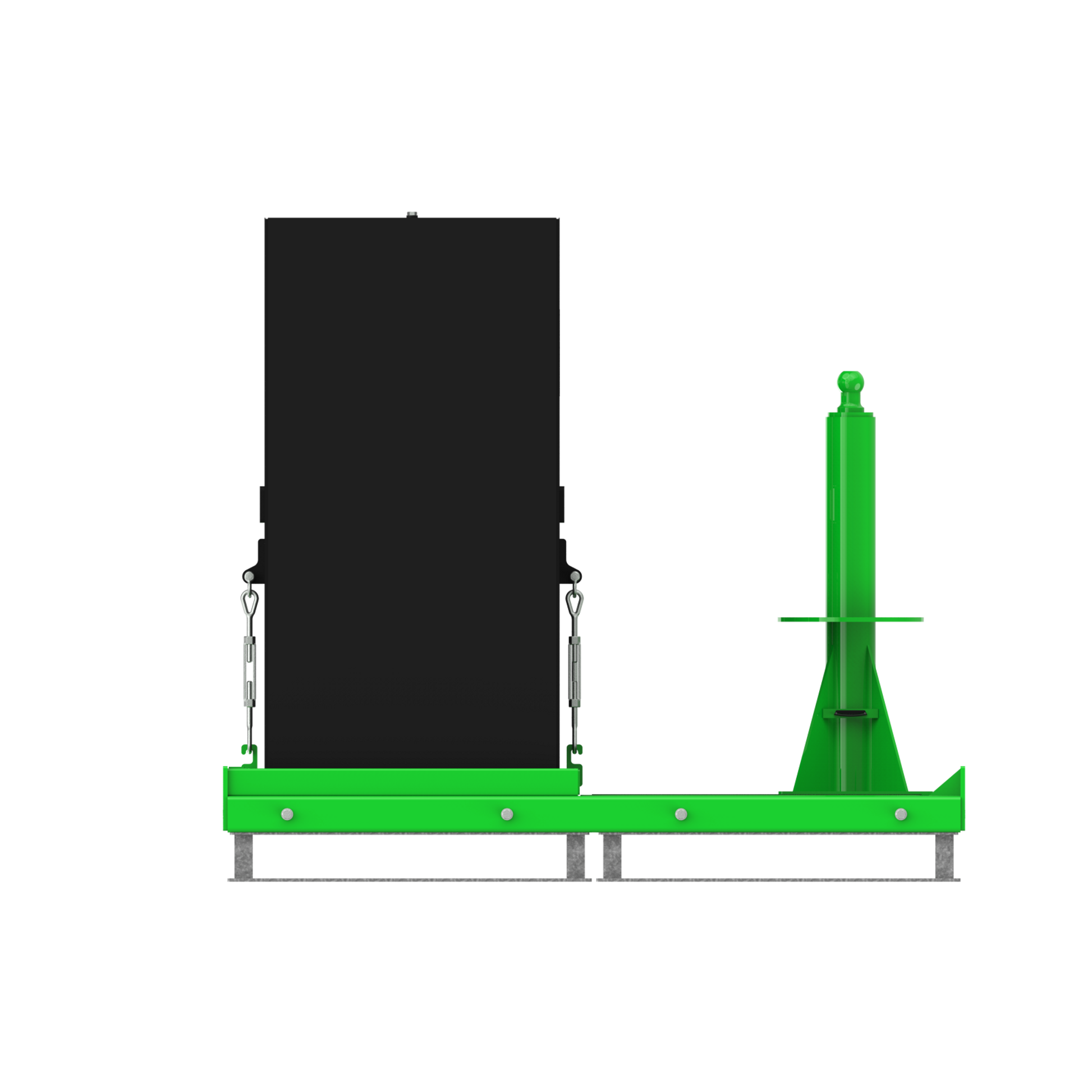

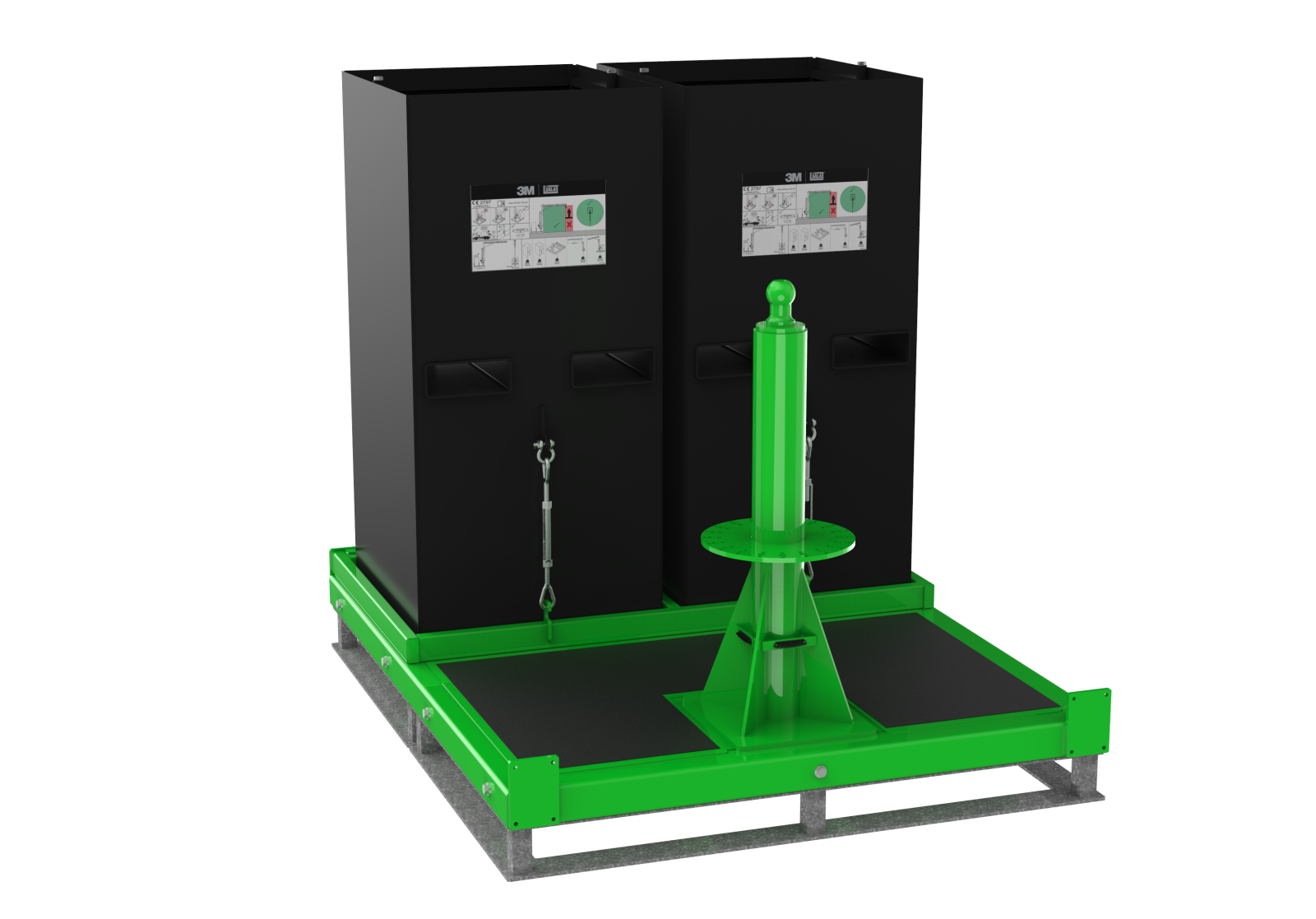

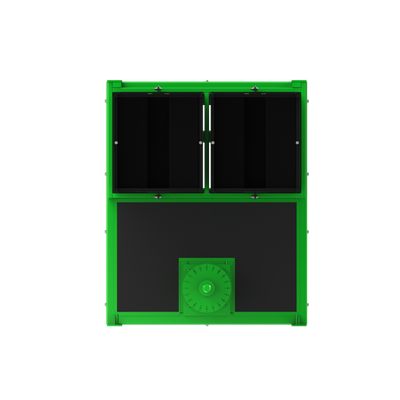

3M DBI-SALA FlexiGuard M200 Modular Jib Counterweight Base Without Concrete - 8530886

3M DBI-SALA FlexiGuard M200 Modular Jib Counterweight Mast Base Without Concrete 8530886 - One or Two

The M200 Portable Counterweight Base design with removable counterweight box enables easier system mobility with a forklift.

The 3M DBI SALA Flexiguard Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.

• Ease of transport | New design facilitates easier system transport
• Removable counterweight box (counterweight Bases) with built in fork pockets and lifting ring attachment points (lifting rings sold separate)
• Open multi-directional base designed to accommodate a wide array of fork shapes and sizes
• Rugged powder coated steel frame construction with durable galvanized lower steel skid
• Integrated leveling bubbles (counterweight Bases)
• 3M Safety-Walk Slip Resistant walking surface (counterweight Bases)
• Improved Mobility | Improved system mobility with optional caster wheel kit.
• Counterweight boxes do not come filled with concrete from the factory. Concrete must be added by purchaser before use.

Install Type	Temporary/Portable
Maximum Height (Imperial)	6.1 ft
Maximum Height (Metric)	1.9 m
Maximum Number of Users	One or Two
Minimum Height (Imperial)	6.1 ft
Minimum Height (Metric)	1.9 m
Mounting Type	Surface
Net Weight (Imperial)	2407.0 lb
Net Weight (Metric)	1091.8 kg
Overall Height (Metric)	1730.0 mm
Overall Length (Metric)	2210.0 mm
Overall Width (Metric)	180.0 mm
Product Number	8530886
Product Series	M200
Product Type	Portable Jib Base
Recommended Industry	Transportation
System Type	Portable Counterweight Bases
Weight Capacity (Imperial)	310.0 lb.
Weight Capacity (Metric)	141.0 kg

3M ID: 7100271460

3M Part #: 8530886

UPC/GTIN #: 648250177174



**Terms & Conditions for Sale of all 3M Flexiguard Systems** Customer is responsible for all shipping costs. Shipping costs will be determined when the order is complete, via the lowest cost carrier commonly used by the distributor, and will be prepaid by Jendco and added to your invoice. The system ordered will be shipped to one address only. There will be no “Will Call” orders – meaning shipment cannot be picked up at a 3M or carrier facility. It must be shipped using the lowest cost carrier to a US Based shipping destination. No returns of Products will be accepted other than in connection with a pre-approved warranty replacement claim. Shipment cannot be refused upon delivery; no credit will be given. Customer must understand the weights, capacities, and dimensions of the systems they are ordering. Systems are made to order, and cannot be returned because the customer site does not accommodate them or the customer use case changes.
