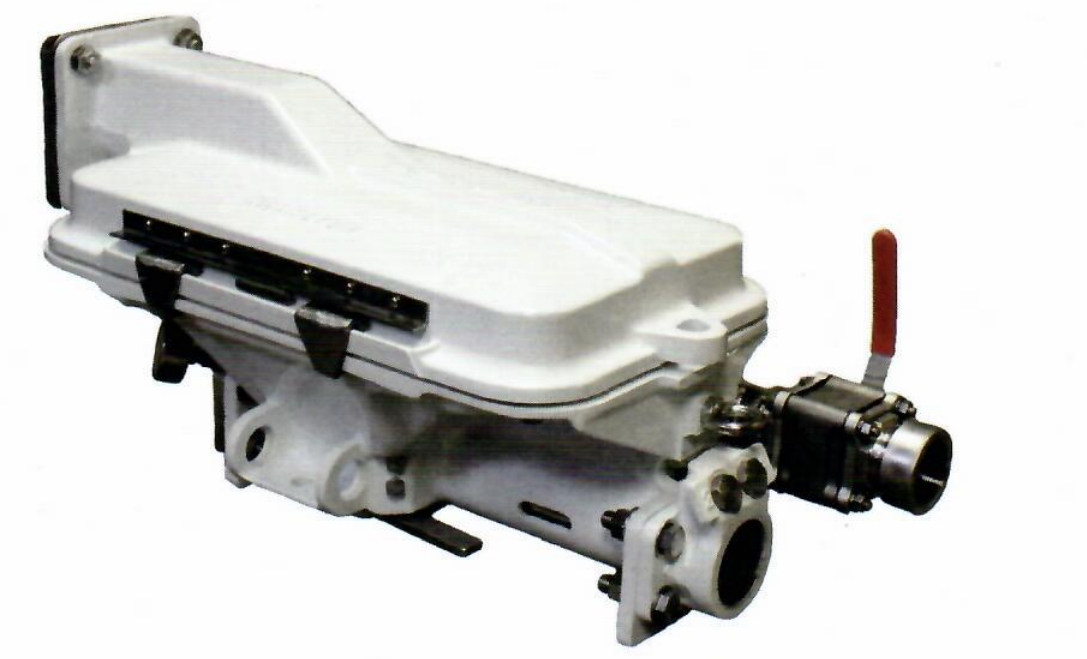

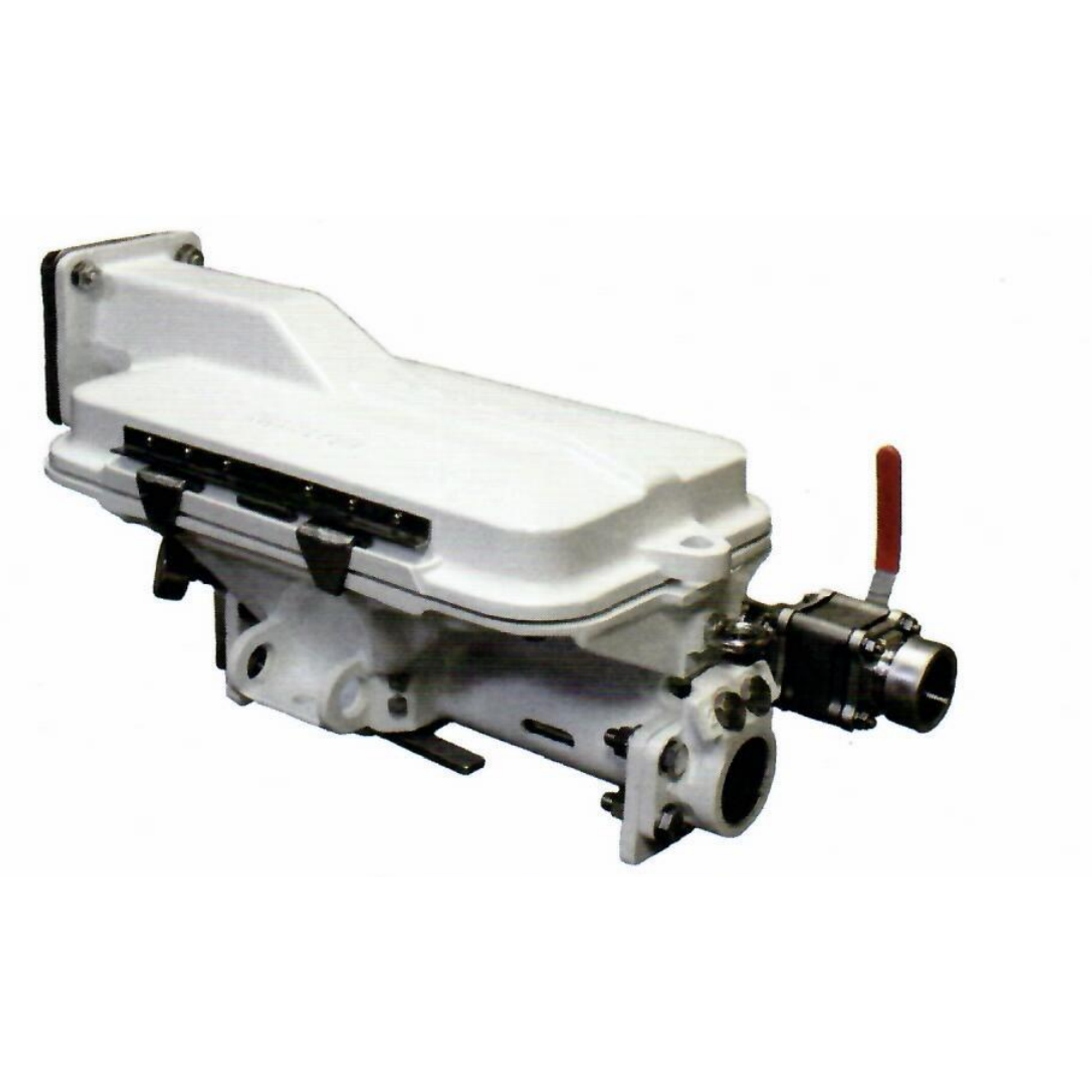

Aargo Food Safe Special Edition Mucking Pump - 901004

Aargo Food Safe Special Edition Mucking Pump - 901004

Designed for the Food and Pharmaceutical Manufacturing Industries. With FDA Approved Snowflake White Powder coating and Stainless Steel Options.

Having no moving parts, the pump is virtually maintenance-free and its simplicity of operation requires no skilled labor.  It replaces costly, time consuming, manual material handling methods that have been the only way to handle many such jobs in the past.  One example is Hopper loading.  With the cover removed, material is fed directly into the hopper through a stainless steel screen that prevents oversized particles from entering the pump.  Sluicing nozzles and cross jets are provided to continually wash material into the main jet stream and prevent "bridging" in the hopper.  The Universal Mucking Pump can also be used for Submersible Operations.  The motive power is generally pressurized liquid.

How it Works:

The Motive power, compressed air or pressurized liquid, enters the pump and passes through a power pac nozzle.  The nozzle is designed to efficiently convert the pressure energy of the power media into velocity energy.  The power media emerges from the nozzle at a very high velocity, creating a suction or vacuum, that causes surrounding material to be drawn into its jet flow stream.  The power media and entrained material then enter the power pac mixer where both are combined into a uniform mixture.  This mixture enters the pump’s discharge diffuser where pressure energy is regained and providing the most efficient velocity to convey the material through long runs of discharge hose.

The Universal Mucking Pump Design Features:

• No moving parts
• Abrasion resistant power pac mixer
• Interchangeable power pacs
• Self-Priming
• High tonnage per hour
• Can operate dry indefinitely
• Relatively Lightweight and easily portable
• Built-in pressure gauge
• Pump can pass solids up to  1 1/4" (22mm)
• Stainless steel screen prevents oversized material from entering the pump
• Stainless steel sluicing and cross jet system integrally cast into pump body
• Cast aluminum body and cover
• Stainless steel fasteners
• Supply and discharge hose connections at one end of pump to improve handling
• Female threads on all hose connections minimize damage

Compact - will fit through a 12"x16" (300x400mm) opening, Accepts 2" (50mm), 3" (75mm), 4" (100mm) Inside Diameter standard flexible hose.

The Universal Mucking Pump is the best solution for cleanup and maintenance problems worldwide including:

• Removable stainless steel insert for easy cleaning and sterilizations
• Moves/Loads high tonnage of product per hour elimination the need for heavy manual lifting.
• Load by vacuum, hopper or super sack
• Move Wet or Dry Ingredients
• Pump can pass solids up to 1-1/2" in diameter



Product Type	Specialty Tool
