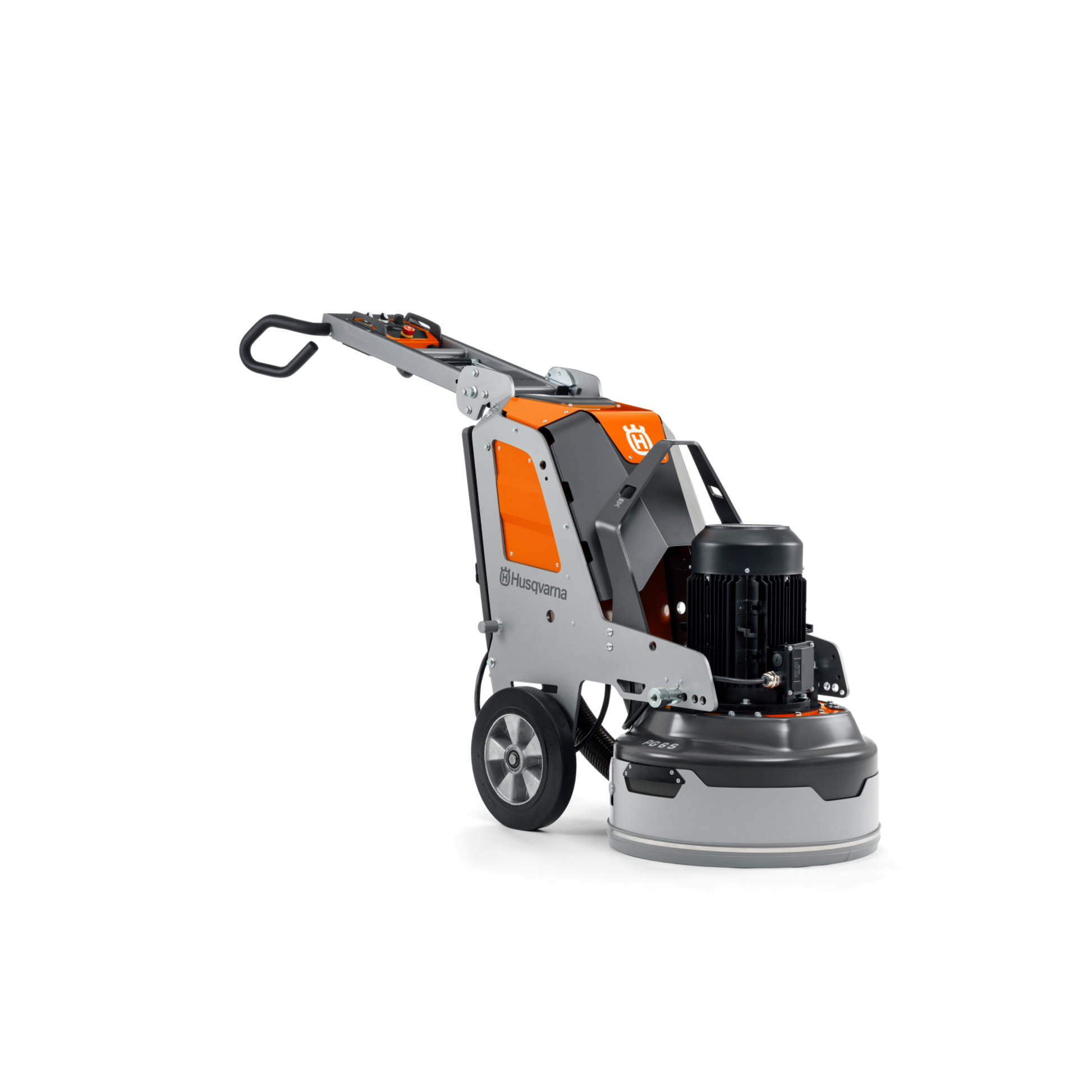

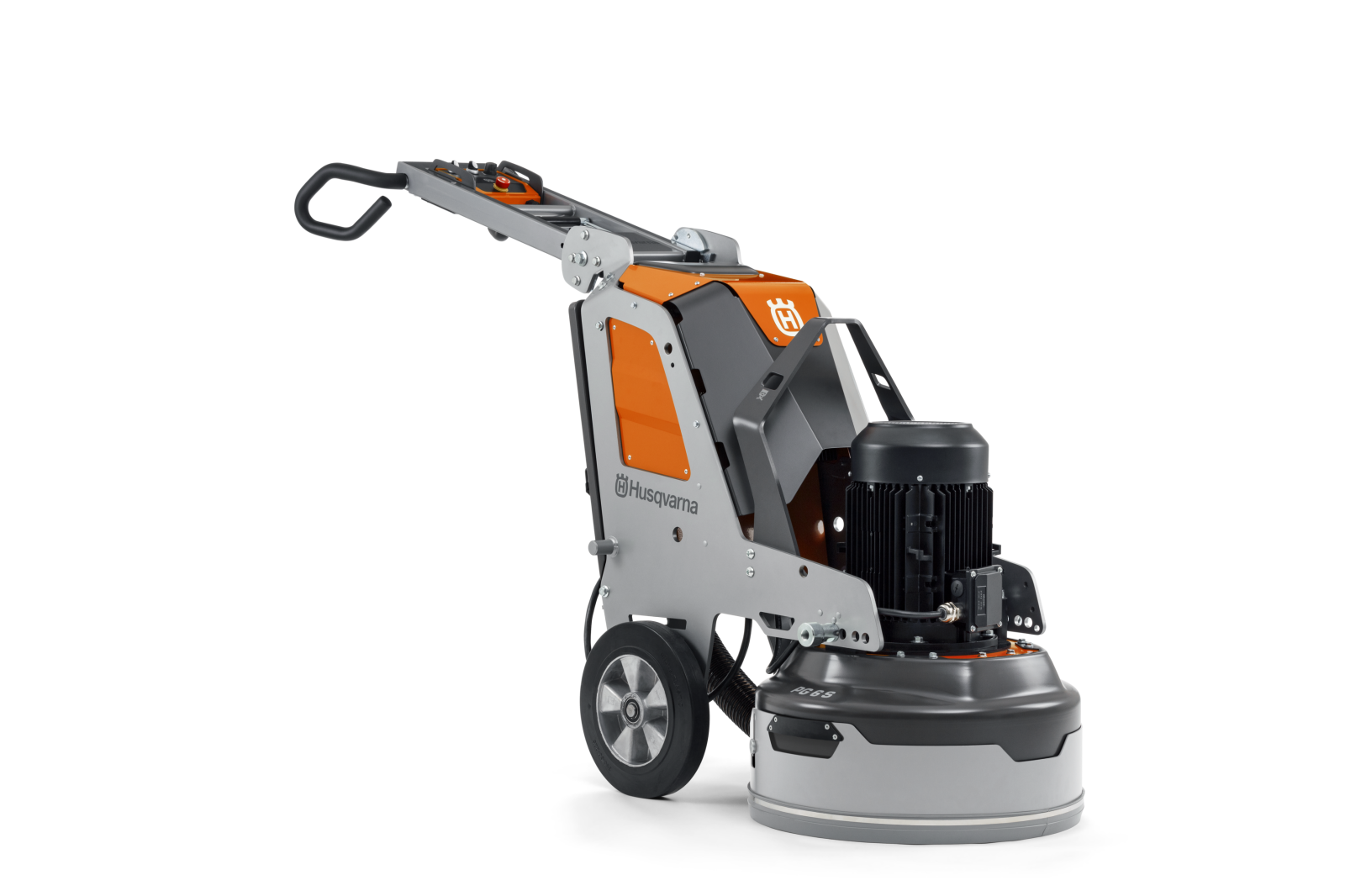

Husqvarna PG 6 S Floor Grinder - 1x200-240 V kW - 970603501

Husqvarna PG 6 S Floor Grinder - 1x200-240 V kW - 970603501

Regular price
Sale price $27,505.35 Regular price $33,295.95

PG 6 S Floor Grinder - 1x200-240 V kW - 970603501

FLOOR GRINDER PG 6 S | 1x200-240 V | 6 kW | US

The PG 6 S is a powerful and robust planetary floor grinder with a focus on simplicity. This is a good choice for grinding and polishing jobs, and for users who prefer a non-motorised drive. Easy to use, the PG 6 S has a large capacity thanks to the 24 in / 600 mm grinding width. And because it runs on 16 amperes, it is also a versatile choice for many environments. Adjustable weights for extra grinding pressure are optional. The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance. Optional: Weights, water kit Tool holder: EZchange

  • Sealed to last - Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
  • Protected electronics - Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.
  • Improved dust pick-up - The robust steel floating shroud follows the floor surface for optimal dust pick-up - no adjustments needed.
  • Ergonomic handle - Adjustable handle for better ergonomics.
  • Time saving tool change - EZchange is an instant and hassle-free system for changing diamond tooling.
  • Adjustable grinding pressure - The optional weights are a musthave for every professional grinder, as they allow to adjust the grinding pressure in three pre-set positions. They also make tilting the machine that much easier.
  • Fleet ready - Husqvarna Fleet Services is a digital, cloud-based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.
  • Quick release of tool holders - Tool holder plates are easily removed without the need of special tooling.
Article ID 970603501
Category Husqvarna/Floor Grinders/Planetary/Large Grinders
Article gross weight 380000 g
Article gross weight (Calc) 837.757 lbs
Direction of rotation Both directions
Engine Power (As rated by the engine manufacturer) (HP) 8.0 hp
Engine Power (As rated by the engine manufacturer) (kW) 6 kW
Frequency 50-60 Hz
Grinding disc diameter (mm) 230 mm
Grinding disc diameter (in) 9.1 in
Grinding disc speed - Min 441 rpm
Grinding disc speed - Max 1176 rpm
Grinding pressure - max 159 kg
Grinding width (in) 23.6 in
Grinding width (mm) 600 mm
Number of grinding discs 3
Packaging height (mm) 1470 mm
Packaging height (In) 57.874 in
Packaging length (mm) 1400 mm
Packaging length (in) 55.118 in
Packaging width (mm) 900 mm
Packaging width (in) 35.433 in
Phases 1 ph
Pins 2P+E
Power source Corded
Product size height (in) 44.6 in
Product size height (mm) 1133 mm
Product size length (in) 48.5 in
Product size length (mm) 1231 mm
Product size width (mm) 638 mm
Product size width (in) 25.1 in
Rated current 50 A
Rated input power (kW) 6 kW
Rated input power (hp) 8.0 hp
Type of operation Push
Voltage 200-240 V
Weight 739 lbs
Weight (complete product w/o side packed articles) 335 kg

MFG Part #: 970603501

UPC #: 7333377595101
