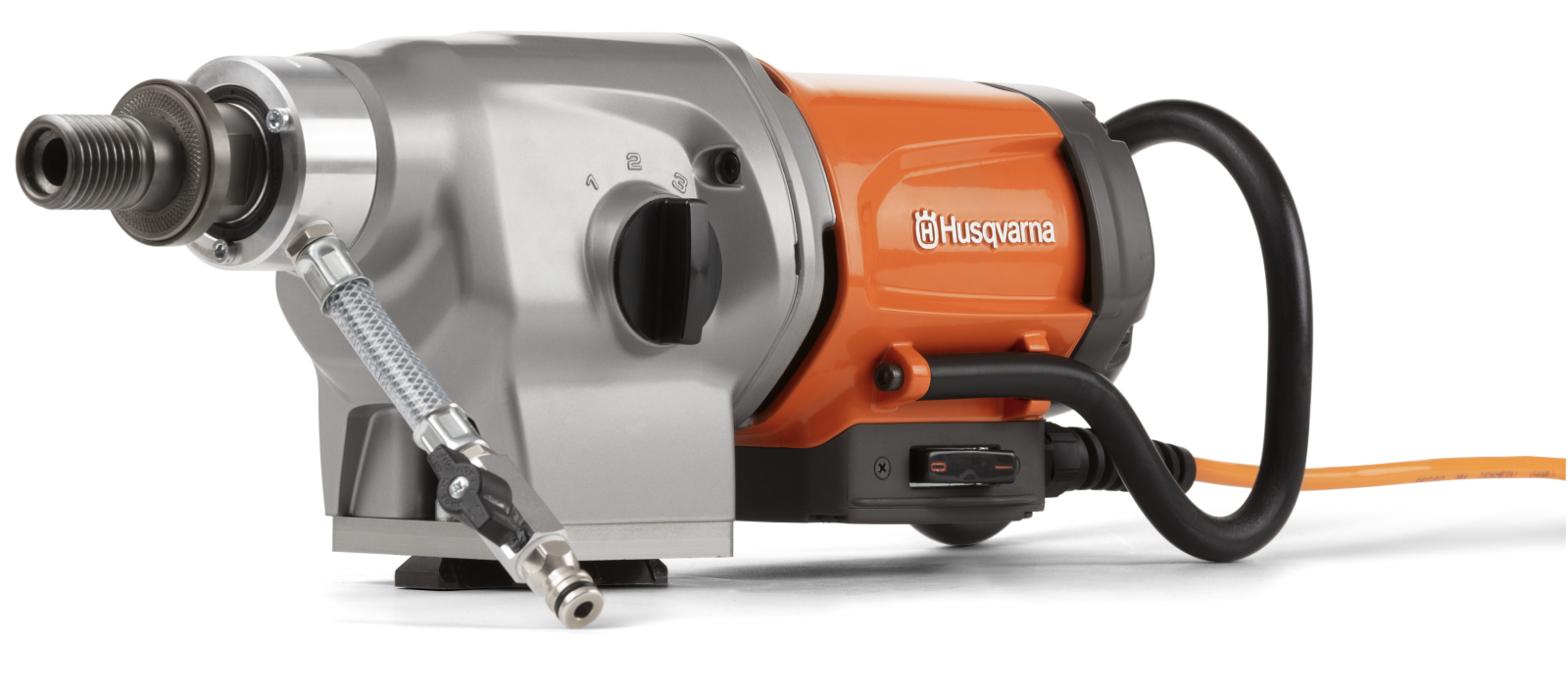

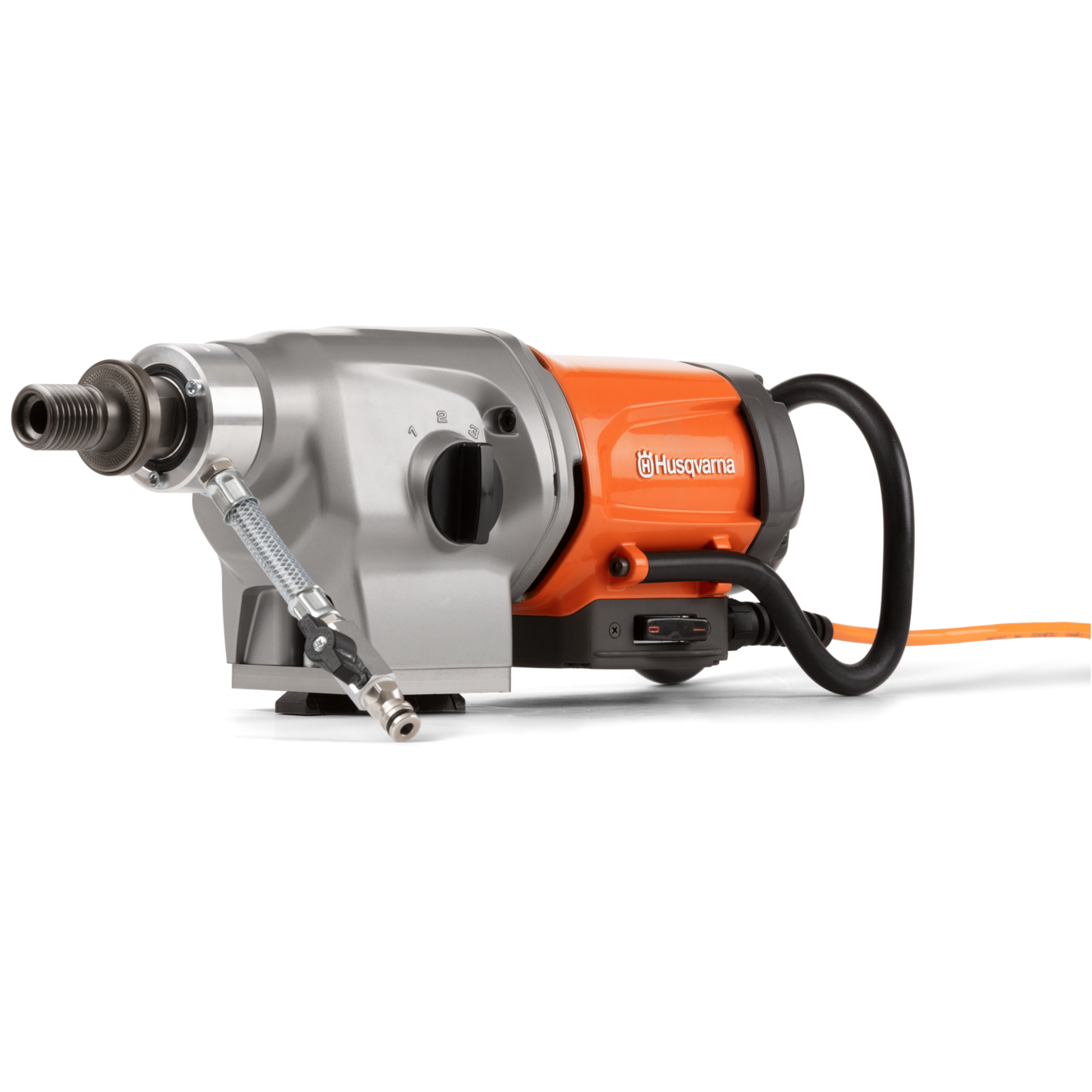

Husqvarna Wet Drill Motor DM 400 100-120V - 1-Ph 50-60Hz 1 1/4" - 967910303
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Wet Drill Motor DM 400 100-120V - 1-Ph 50-60Hz 1 1/4" - 967910303
DRILL MOTOR DM 400 100-120V | 1-ph | 50-60Hz | US | 1 1/4"
DM 400 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed. Recommended diameter 55-350 mm. With aluminium motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need to cut close to corners.
- Sturdy and durable - Equipped with an aluminium housing and the protective carrying handle ensures rough handling.
- Ergonomic - Equipped with a carrying handle for easy transport and handling.
- Optimised RPM's - Enables high drilling performance.
- Embedded Connectivity - An enhanced version of Husqvarna Fleet Services. Enables data analytics and insights into the health of the machine.
- Quick connection - Enables ease of connection to a drill stand.
- Quick-release washer - Enables easy dispatch of drill core bits.
- Functional design - Enables easy access and serviceability.
- Load indicator - The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.
- Elgard - The machine uses pulsation to warn you of an approaching overload. This increases productivity and extends product life.
- Reliable gearbox - 3 speed gearbox for optimal drilling performance and longer service intervals.
- Easy start with reduced speed - Used with starting a hole, speed is reduced by half using the Smart Start ® button, which reduces vibration.
- Angle drilling - Drilling holes in stepless adjustable angles.
- Barriers - Drilling for installation of stair rails, fences, etc.
- Horizontal drilling - Drilling horizontally.
- Stitch drilling - Drilling multiple holes next to each other to make openings.
- Water evacuation - Drilling for water evacuation.
- Vertical drilling - Drilling upwards and downwards.
| Article ID | 967910303 |
| Category | Husqvarna/Concrete Core Drills/Core Drill Motors/ |
| Article gross weight | 16600 g |
| Article gross weight (Calc) | 36.597 lbs |
| Coolant | Wet |
| Drill bit diameter with stand - Max (mm) | 350 mm |
| Drill bit diameter with stand - Max (in) | 14 in |
| Frequency | 50-60 Hz |
| Number of gearbox speeds | 3 |
| Packaging height (mm) | 300 mm |
| Packaging height (In) | 11.811 in |
| Packaging length (mm) | 625 mm |
| Packaging length (in) | 24.606 in |
| Packaging width (mm) | 255 mm |
| Packaging width (in) | 10.039 in |
| Phases | 1 ph |
| Power source | Corded |
| Product size height (in) | 7.3 in |
| Product size height (mm) | 185 mm |
| Product size length (in) | 21.5 in |
| Product size length (mm) | 546 mm |
| Product size width (mm) | 138 mm |
| Product size width (in) | 5.5 in |
| Rated input power (kW) | 3.2 kW |
| Rated input power (hp) | 4.29 hp |
| Recommended drill bit diameter - min | 2 in |
| Recommended drill bit diameter - min | 55 mm |
| Sound power level - guaranteed (LWA) | 112 dB(A) |
| Sound power level - measured | 110 dB(A) |
| Sound pressure level at operators ear (LpA) | 92 dB(A) |
| Spindle speed unloaded gear 1 | 420 rpm |
| Spindle speed unloaded gear 2 | 820 rpm |
| Spindle speed unloaded gear 3 | 1250 rpm |
| Spindle thread - outer | 1 1/4" 7 UNC |
| Voltage | 100-120 V |
| Water connector | G 1 / 4" |
| Water pressure - max (bar) | 3 bar |
| Water pressure - max (psi) | 43.5 psi |
| Weight | 31 lbs |
| Weight (complete product w/o side packed articles) | 14 kg |
MFG Part #: 967910303
UPC #: 7391883939383
| Product Type | Husqvarna Parts & Accessories |
|---|
