Husqvarna Wet Drill Motor DM 406 1 1/4" 7 - 965158207
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

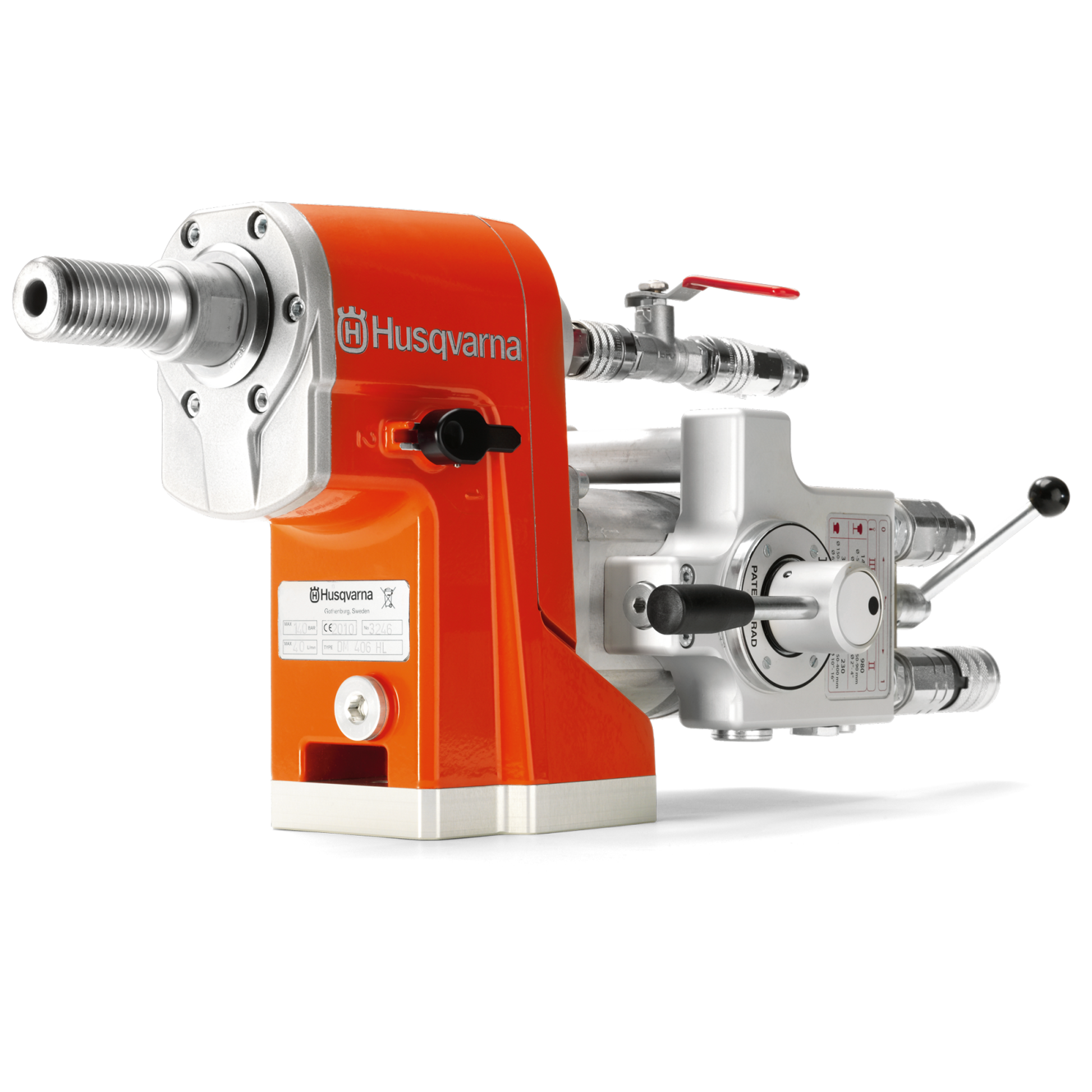

Wet Drill Motor DM 406 1 1/4" 7 - 965158207
DRILL MOTOR DM 406 1 1/4" 7
DM 406 H is our powerful hydraulic core drill for drilling holes up to 24 in. diameter. An excellent choice for heavy-duty core drilling applications where high production rates are needed, especially with large diameter core bits. The hydraulic speed can be changed while drilling, making the DM 406 H efficient and very easy to use. Suitable for large and deep holes, waste evacuation pipes and stitch drilling in a variety of materials including reinforced concrete.
- Speed regulation during drilling - Six different spindle speeds for optimum drilling performance.
- Optimal speed for each application - Six-speed gearbox provides a wide rpm range for all applications.
| Article ID | 965158207 |
| Category | Husqvarna/Concrete Core Drills/Core Drill Motors/ |
| Article gross weight | 21000 g |
| Article gross weight (Calc) | 46.297 lbs |
| Coolant | Wet |
| Drill bit diameter with stand - Max (mm) | 650 mm |
| Drill bit diameter with stand - Max (in) | 25.6 in |
| Drill bit diameter - Max (mm) | 650 mm |
| Drill bit diameter - Max (in) | 26 in |
| Hydraulic pressure - max (bar) | 140 bar |
| Hydraulic pressure - max (psi) | 2030 psi |
| Number of gearbox speeds | 2 |
| Packaging height (mm) | 395 mm |
| Packaging height (In) | 15.551 in |
| Packaging length (mm) | 560 mm |
| Packaging length (in) | 22.047 in |
| Packaging width (mm) | 230 mm |
| Packaging width (in) | 9.055 in |
| Power source | Hydraulic |
| Product size height (in) | 20.5 in |
| Product size height (mm) | 520 mm |
| Product size length (in) | 10.2 in |
| Product size length (mm) | 260 mm |
| Product size width (mm) | 210 mm |
| Product size width (in) | 8.3 in |
| Rated input power (kW) | 9,3 kW |
| Rated input power (hp) | 12,5 hp |
| Recommended drill bit diameter - min | 1.97 in |
| Recommended drill bit diameter - min | 50 mm |
| Sound power level - guaranteed (LWA) | 113 dB(A) |
| Sound power level - measured | 112 dB(A) |
| Sound pressure level at operators ear (LpA) | 98 dB(A) |
| Spindle speed unloaded gear 1 | 340 rpm |
| Spindle speed unloaded gear 2 | 1400 rpm |
| Spindle thread - outer | 1 1/4" 7 UNC |
| Water connector | R 1 / 2" |
| Water pressure - max (bar) | 8 bar |
| Water pressure - max (psi) | 116 psi |
| Weight | 35 lbs |
| Weight (complete product w/o side packed articles) | 16 kg |
MFG Part #: 965158207
UPC #: 7391883528150
| Product Type | Husqvarna Parts & Accessories |
|---|
