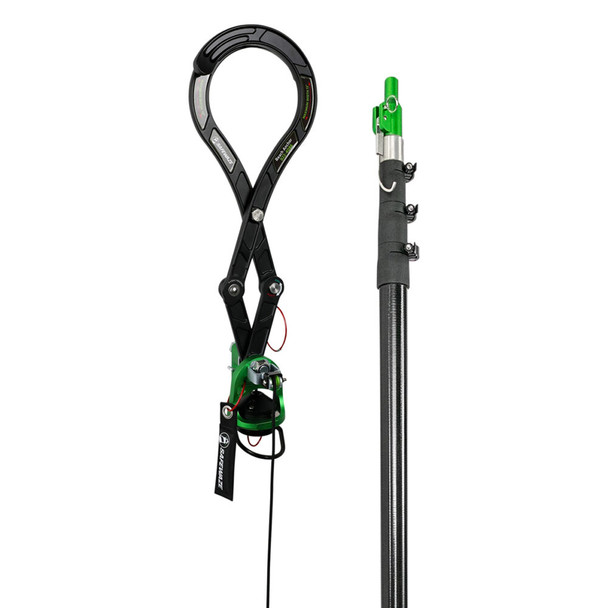

Safewaze Reach Anchor Assembly - 024-4109

Safewaze Reach Anchor Assembly - 024-4109

The Safewaze Reach Anchor Assembly - 024-4109 is a versatile anchorage solution designed for demanding fall protection applications. Built with aluminum, stainless steel, steel, nylon, polyester rope, and a fiberglass pole with aluminum head, it offers a durable and practical setup for jobsite use. With a maximum install height of 20' from the working surface and compatibility with I-beams up to 12", it is well suited for a range of elevated work environments. This assembly supports a 5,000 lbs. breaking strength and a 1,000 lbs. working load limit for dependable performance.

Key Features

• Constructed with aluminum, stainless steel, steel, nylon, polyester rope, and a fiberglass pole with aluminum head
• D-ring anchorage point for fall protection applications
• 5,000 lbs. (22 kN) strength rating
• ANSI weight capacity: 130-310 lbs. (59-141 kg)
• OSHA weight capacity: up to 420 lbs. (191 kg)
• Z359.18-2017 Type A compliant
• Maximum install height: 20' from working surface
• Working load limit: 1,000 lbs. (4.4 kN)
• Compatible with I-beams up to 12"

Ideal For

• Fall protection setups requiring a portable reach anchor assembly
• Work on elevated structures with limited access to anchorage points
• Use on I-beams up to 12" in size
• Applications requiring compliance with OSHA and ANSI fall protection standards

Specifications

Reliable anchorage support for demanding fall protection needs.

MFG Part #: 024-4109

UPC: 732388045143
