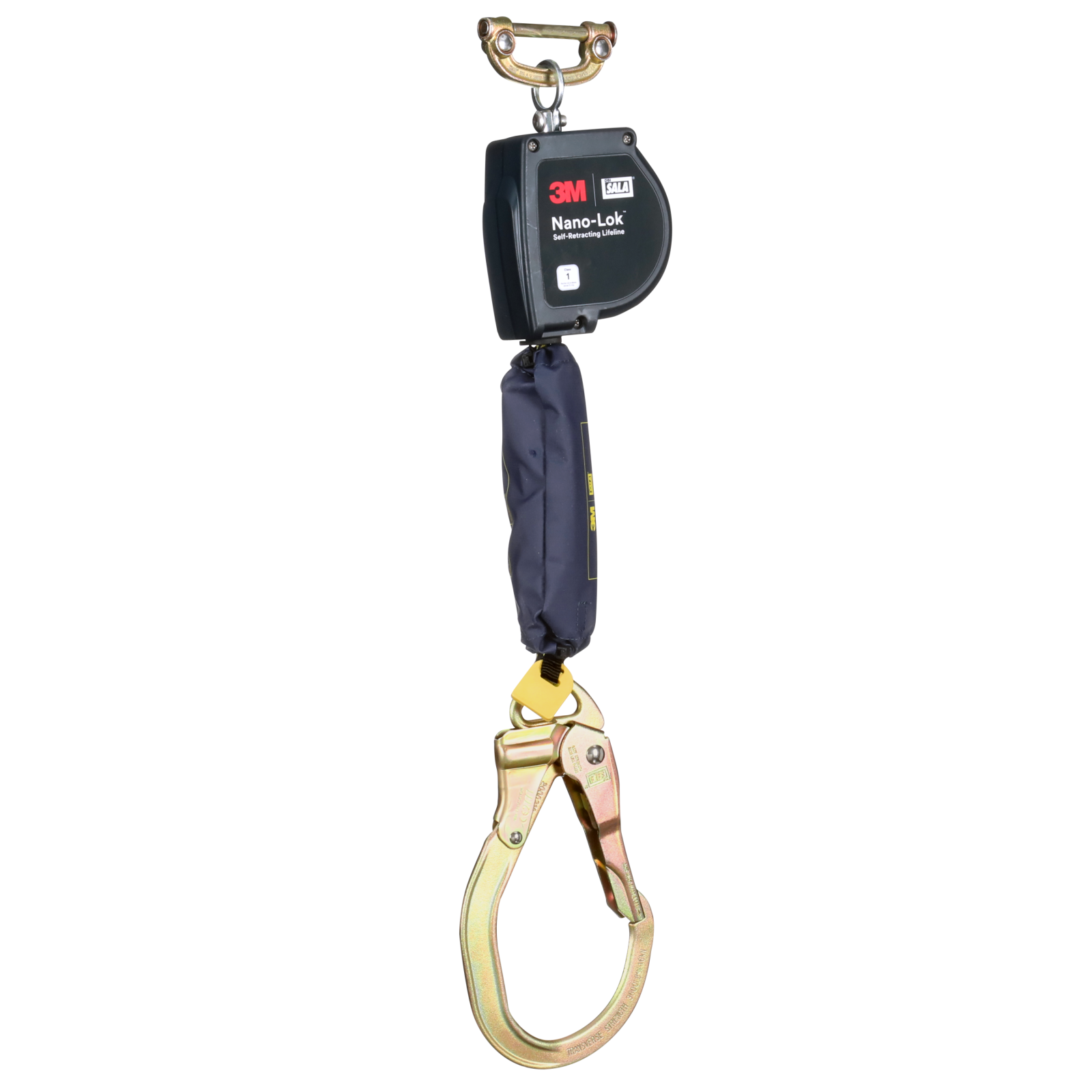

3M DBI-SALA 9 ft. Class 1 Nano-Lok XL Self-Retracting Lifeline with Steel Rebar Lock Hook - 3100601

Nano-Lok XL Self-Retracting Lifeline with Quick Connect Web Steel Rebar Lock Hook Class 1 Compliant 9 ft.

3M DBI-SALA Nano-Lok Extended Length Self-Retracting Lifelines are going to great lengths to help improve fall protection. Available in 9 ft., 11 ft., 15 ft. and 20 ft. lengths, the family of Nano-Lok SRLs combines fall protection with ease-of-use and comfort for even more applications. Speed sensing brake activation system provides protection at low heights. Tension is always kept on the lifeline, which helps reduce dragging, snapping and trip falls. Durable nitrile energy absorber is a smaller design and last four times longer.

3M DBI-SALA Nano-Lok Extended Length Self-Retracting Lifeline is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker's way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are dozens of models to choose from to suit almost any application. Nano-Lok locks quickly-stopping a fall within inches-providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

• Impact-resistant housing made of tough thermoplastic housing designed to help withstand demanding worksites
• Speed-sensing brake system provides as low as 6 ft. (2m) of required fall clearance
• Swiveling anchorage loop limits lifeline twisting for smooth operation
• Impact indicator provides a visual alert that the SRL has been involved in a fall
• Galvanized steel cable lifeline
• High-capacity external energy absorber designed for users (and tools) up to 420 lbs. (190kg)

Replaces 3M Part # 3101591

Anchor Connection Type	Non Pertinent
Anchor Hook Material	Non Pertinent
ANSI Class Level	Class 1
Color Family	Blue
Harness Connection Hook Material	Zinc Plated Steel
Harness Connection Type	Single Pin Connector
Housing Material	Nylon Thermoplastic
Housing Type	Thermoplastic
Install Type	Portable & Removable
Leg Count	Single-Leg
Lifeline Hook Material	Zinc Plated Steel
Lifeline Length (Imperial)	9.0 ft
Lifeline Length (Metric)	2.7 m
Lifeline Material	Web
Maximum Number of Users	One
Mounting Type	Direct to Harness Back
Net Weight (Imperial)	3.89 lb
Overall Length (Imperial)	9.0 ft
Overall Length (Metric)	2.74 m
Product Color	Blue
Product Number	3100601
Product Series	Nano-Lok
Product Type	Extended Length Quick Connect Self-retracting Lifeline (Web)
Recommended Application	Painting
Recommended Industry	Wind Energy
Specifications Met	29 CFR OSHA 1910.140
Style	Single Leg
Weight Capacity (Imperial)	420.0 lb.
Weight Capacity (Metric)	190.0 kg

Type: Class 1

3M ID: 7100325448

3M Part #: 70804106618

UPC/GTIN #: 648250243022

Product Type	Fall Protection Retractables
