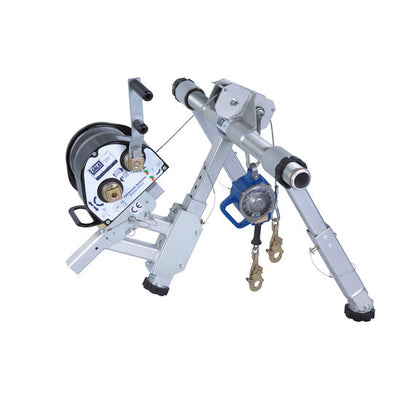

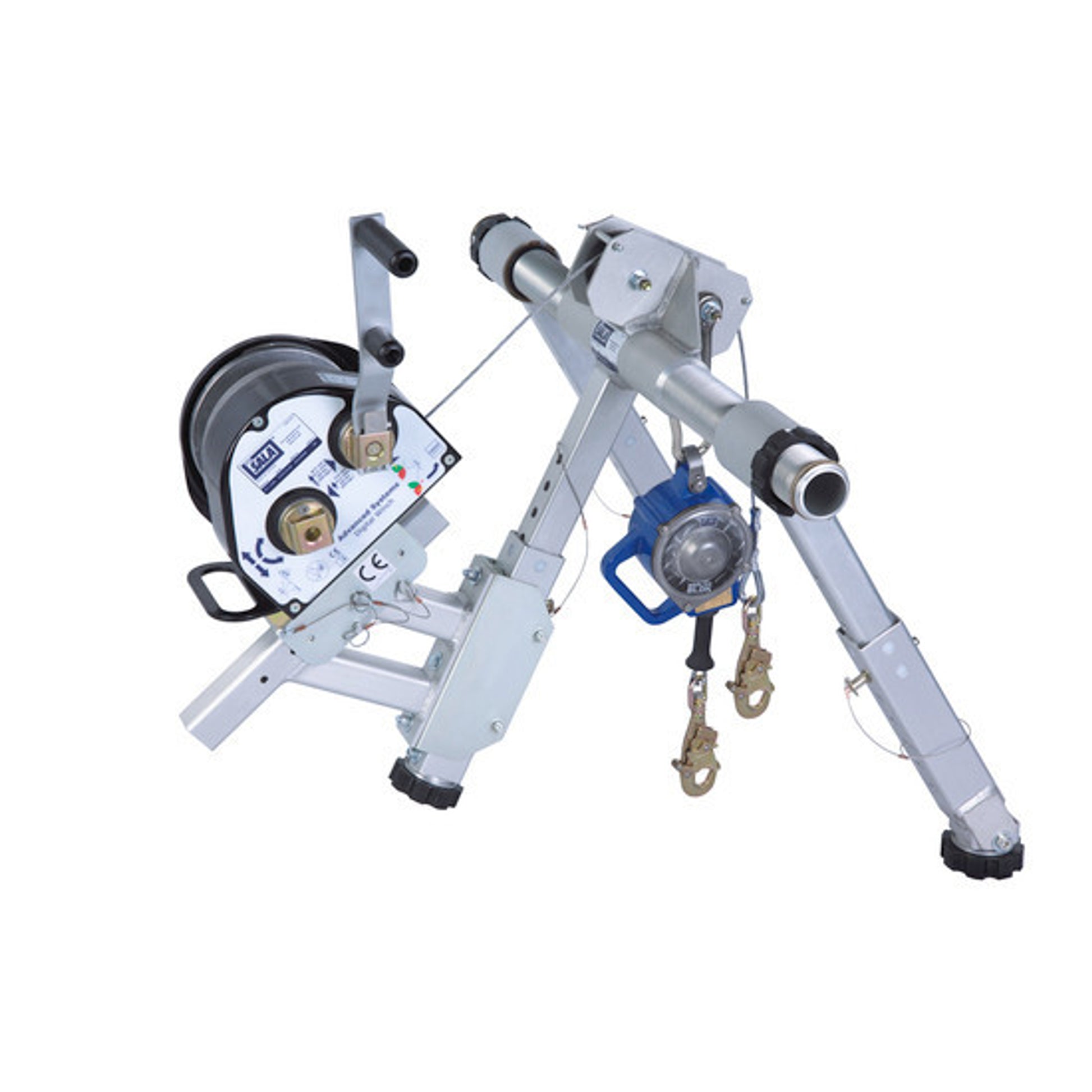

3M DBI-SALA Advanced Tank Pod System - 8513700

3M DBI-SALA Advanced Tank Pod System - 8513700

Tank pod system mounts to manway flanges with 1/2 in. to 3/4 in. (1.2-1.9 cm) NC type studs and accommodates Advanced digital winches.

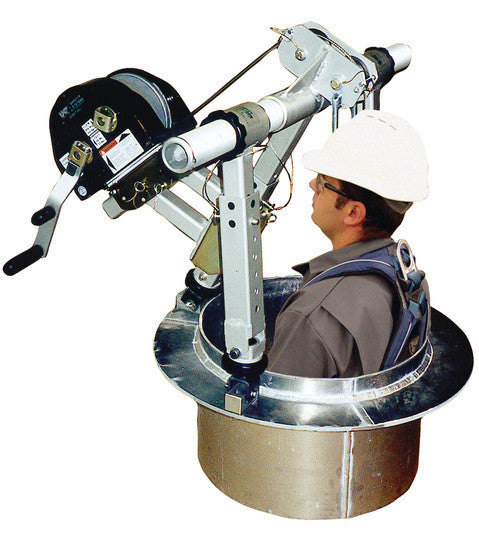

The Advanced Tank Pod System is designed to mount to tank manways with existing hardware for securing hatch covers. It mounts to manway flanges on bolt circle diameters from 19" to 36" (48.2 to 91.4 cm), with studs from 1/2" to 3/4" (1.2 to 1.9 cm) national coarse type. Three independently adjustable legs accommodate flange inclinations to a maximum of 45 degrees. The unit can be set up in an overhead clearance of only 25". Lightweight anodized aluminum construction with plastic inserts at all bearing points reduce the possibility of vessel contamination and simplify equipment cleaning. The Tank Pod can be fitted with a variety of winches, ladder systems, and fall-arrest devices to meet any application requirement. When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA for the type of high quality, rugged systems that will ensure top performance when it is needed the most.

• 450 lbs. (204 kg)
• Order mechanical winch/SRL device(s) separately
• Various winch and 3-way self retracting lifeline configurations and options are available to suit most site requirements for added peace of mind.
• Built-in pulley for lifeline
• Route lifeline of mechanical device for smooth, efficient rescue and work support operations.
• Built-in secondary fall arrest anchor point
• Allows use of back-up or secondary fall protection device such as a self retracting lifeline when required.
• Quick mount winch bracket
• Simple detent style bracket offers extremely fast and safe mechanical device installation.
• Tank pod system for tank manways

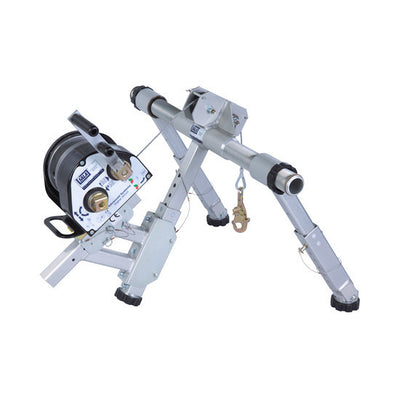

• Unique system is designed to mount to tank manways and when combined with an Advanced digital winch provide a safe, efficient confined space entry system.
• Fits bolt circle diameter 19 in. to 36 in. (48.2 to 91.4 cm)
• One system will fit a variety of different tanks reducing the number of systems required and overall costs.
• Attaches to studs from 1/2 in. to 3/4 in. (1.2 to 1.9 cm)
• Designed to utilize existing hardware for added ease of use - other mounting options and extensions are available.
• Three independently adjustable legs
• Accommodate flange inclinations to a maximum of 45 degrees for added versatility.
• Extremely compact requiring only 25 in. (63.5 cm) of clearance
• Fit's in very tight areas often associated with tanks with minimal overhead clearance needed to efficiently operate the system.
• Set-up and dismantle with standard tools
• Integral detent pins and tools found in most facilities is all that is required for for fast, simple and safe installation.
• Durable and corrosion resistant construction
• An anodized aluminum construction with plastic inserts at all bearing points reduce the possibility of vessel contamination and simplify equipment cleaning.

Dimensions	106.70x22.90x57.20cm
Install Type	Portable
Product Color	Silver
Product Number	8513700
Product Series	Advanced
Product Type	Tank Pod System
Recommended Industry	General Industrial
Weight (Imperial)	21.0 kg
Weight Capacity	450 lbs. (204 kg)

3M ID: 7100236341

3M Part #: 8513700

UPC/GTIN #: 648250163139

Product Type	Fall Protection Confined Space
