3M DBI-SALA Nano-Lok Connected Order Picker System - Interlock - 6 ft - 3100281

3M DBI-SALA Nano-Lok Connected Order Picker System - Interlock - 6 ft - 3100281

Regular price $1,328.13
Sale price $1,328.13 Regular price $1,805.13

3M DBI-SALA Nano-Lok Connected Order Picker System - Interlock - 6 ft - 3100281

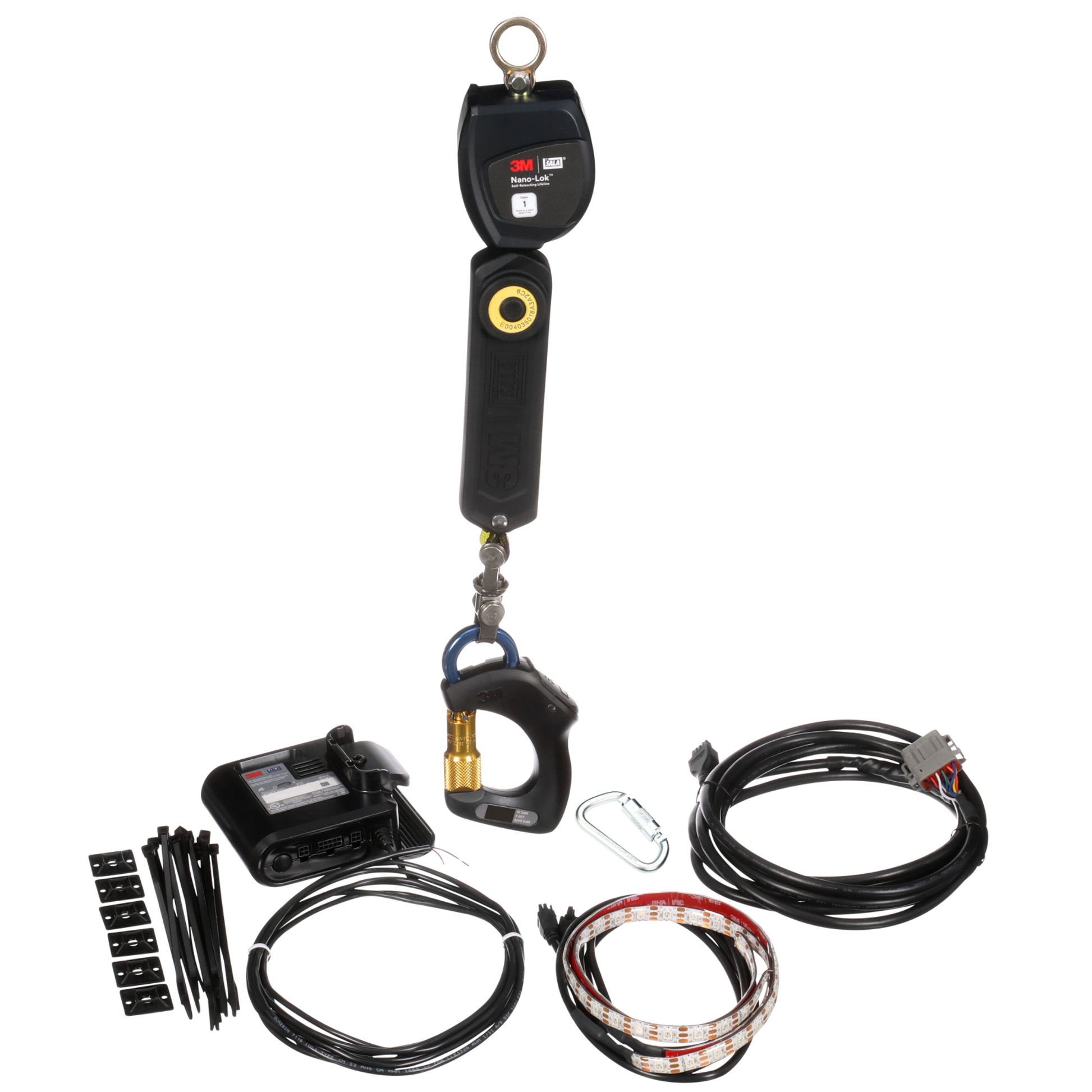

The 3M DBI-SALA Nano-Lok Connected Order Picker Interlock System is an innovative fall protection system that senses a worker's presence on an order picking vehicle and verifies their tie-off status to promote situational awareness and safe behavior. OEM dealer technician installation is required. The 3M DBI-SALA Nano-Lok Connected Order Picker Interlock System communicates visual and audible alerts in real time to promote situational awareness and safe behavior. Interlock System includes: 3M DBI-SALA Nano-Lok Connected Carabiner Self-Retracting Lifeline, Interlock Sensor Box, Carabiner, Light Strips and Interlock Lock Out Cable

The 3M DBI-SALA Nano-Lok Self-Retracting Lifelines are rugged, yet lightweight and engineered devices that you can count on for comfortable and efficient fall protection. With stainless steel components, an anti-ratcheting brake system, and a semi-sealed design, this system is built to last. The lifeline extends as the user moves away and retracts automatically, allowing the user to move within a recommended working area at normal speeds. In the event of a fall, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user. These features are key safety improvements compared to the use of a lanyard. Available in multiple Self-retracting lifeline lengths.

  • Anchoring carabiner with tamper resistance included
  • Connected Carabiner operates with a replaceable coin cell battery (CR2032 type), and power not required for basic SRL mechanical function
  • Features a quick-activating speed-sensing brake, a high-capacity energy absorber and Dyneema abrasion resistant webbing
  • Swivel at both ends allowing freedom of movement while preventing web twist and wear
  • The 3M DBI-SALA Nano-Lok Connected Order Picker System is compatible with major Order Picker Original Equipment Manufacturers (OEMs)
  • The components of the system can be easily maintained and/or replaced.
  • The sensing carabiner confirms a secure connection to the worker ’s harness D-ring, ensuring a safe and reliable attachment

Material Specifications

Anchor Connection Type Cab-mount Carabiner
Anchor Hook Material Zinc Plated Steel
Anchor Material Aluminum
Brand DBI-SALA
Harness Connection Hook Material Aluminum
Harness Connection Type Connected Carabiner
Housing Material Nylon Thermoplastic
Install Type Reusable or Permanent
Leg Count Single-Leg
Lifeline Hook Material Aluminum/Plastic
Lifeline Length (Imperial) 6.0 ft
Lifeline Length (Metric) 1.8 m
Lifeline Material Dynema Webbing
Maximum Number of Users One
Overall Length (Imperial) 6.0 ft
Overall Length (Metric) 1.8 m
Product Color Blue
Product Number 3100281
Product Series Nano-Lok
Product Type Connected Order Picker Self Retracting Lifeline System
Recommended Application Powered Industrial Order Picking Truck
Recommended Industry Food Processing General Industry Warehousing
Specifications Met 29 CFR OSHA 1910.140 29 CFR OSHA 1926.502 ANSI Class Level 1 ANSI/ASSP Z359.14-2021
Style Single Leg
Trademark 1 3M
Trademark 2 DBI-SALA
Weight Capacity (Imperial) 310.0 lb
Weight Capacity (Metric) 140.6 kg
Working Length (Imperial) 4.6
Working Length (Metric) 1.4

3M ID:7100330252

MFG Part #: 3100281

UPC #: 648250241004

Class 1
