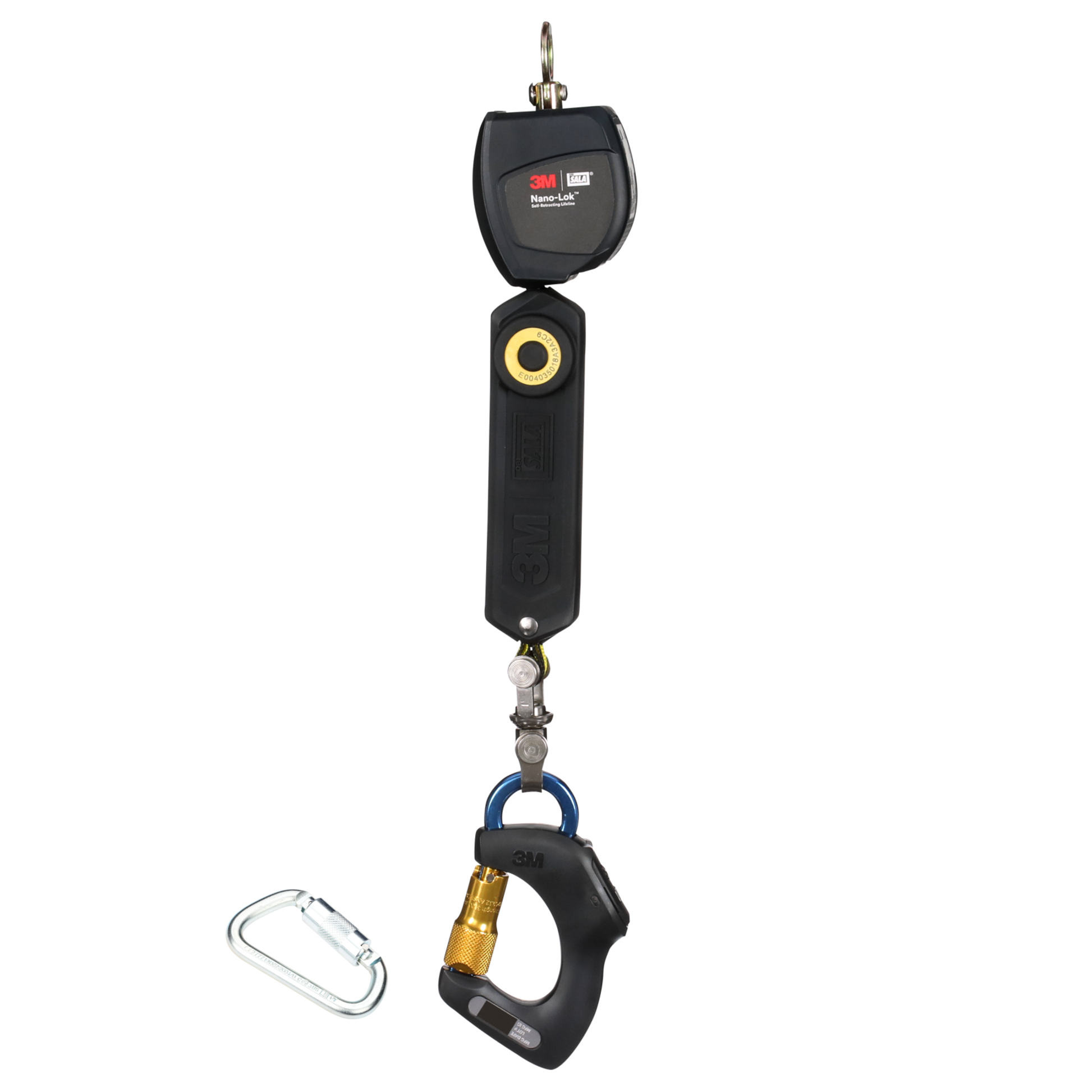

3M DBI-SALA Nano-Lok Connected Order Picker System - Wireless - 9.8 ft - 3100304

3M DBI-SALA Nano-Lok Connected Order Picker System - Wireless - 9.8 ft - 3100304

Regular price
Sale price $791.77 Regular price $1,001.65

3M DBI-SALA Nano-Lok Connected Order Picker System - Wireless - 9.8 ft - 3100304

The 3M DBI-SALA Nano-Lok Connected Order Picker Interlock Wireless System communicates the status of fall protection tie-off to the vehicle, limiting truck functionalities, including elevation and driving speed when tie-off is not detected. Wireless Interlock System includes: 3M DBI-SALA Nano-Lok Connected Carabiner Self-Retracting Lifeline and Carabiner

The 3M DBI-SALA Nano-Lok Self-Retracting Lifelines are rugged, yet lightweight and engineered devices that you can count on for comfortable and efficient fall protection. With stainless steel components, an anti-ratcheting brake system, and a semi-sealed design, this system is built to last. The lifeline extends as the user moves away and retracts automatically, allowing the user to move within a recommended working area at normal speeds. In the event of a fall, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user. These features are key safety improvements compared to the use of a lanyard. Available in multiple Self-retracting lifeline lengths.

  • Designed for simple Bluetooth pairing
  • Features a quick-activating speed-sensing brake, a high-capacity energy absorber and Dyneema abrasion resistant webbing
  • Real time tie-off status communicated through the order picker ’s telemetry system
  • Swivel at both ends allowing freedom of movement while preventing web twist and wear
  • The 3M DBI-SALA Nano-Lok Connected Order Picker System is compatible with major Order Picker Original Equipment Manufacturers (OEMs)
  • The components of the system can be easily maintained and/or replaced.

Material Specifications

Anchor Connection Type Cab-mount Carabiner
Anchor Hook Material Zinc Plated Steel
Anchor Material Aluminum
Brand DBI-SALA
Harness Connection Hook Material Aluminum
Harness Connection Type Connected Carabiner
Housing Material Nylon Thermoplastic
Install Type Reusable or Permanent
Leg Count Single-Leg
Lifeline Hook Material Aluminum/Plastic
Lifeline Length (Imperial) 9.8 ft
Lifeline Length (Metric) 3.0 m
Lifeline Material Dynema Webbing
Maximum Number of Users One
Overall Length (Imperial) 9.8 ft
Overall Length (Metric) 3.0 m
Product Color Blue
Product Number 3100304
Product Series Nano-Lok
Product Type Connected Order Picker Self Retracting Lifeline System
Recommended Application Powered Industrial Order Picking Truck
Recommended Industry Food Processing General Industry Warehousing
Specifications Met ANSI Class Level 1 CSA Z259.2.2-17, Class SRL
Style Single Leg
Trademark 1 3M
Trademark 2 DBI-SALA
Weight Capacity (Imperial) 310.0 lb
Weight Capacity (Metric) 140.6 kg
Working Length (Imperial) 8.1
Working Length (Metric) 2.5

3M ID:7100363521

MFG Part #: 3100304

UPC #: 648250261217

Class 1
