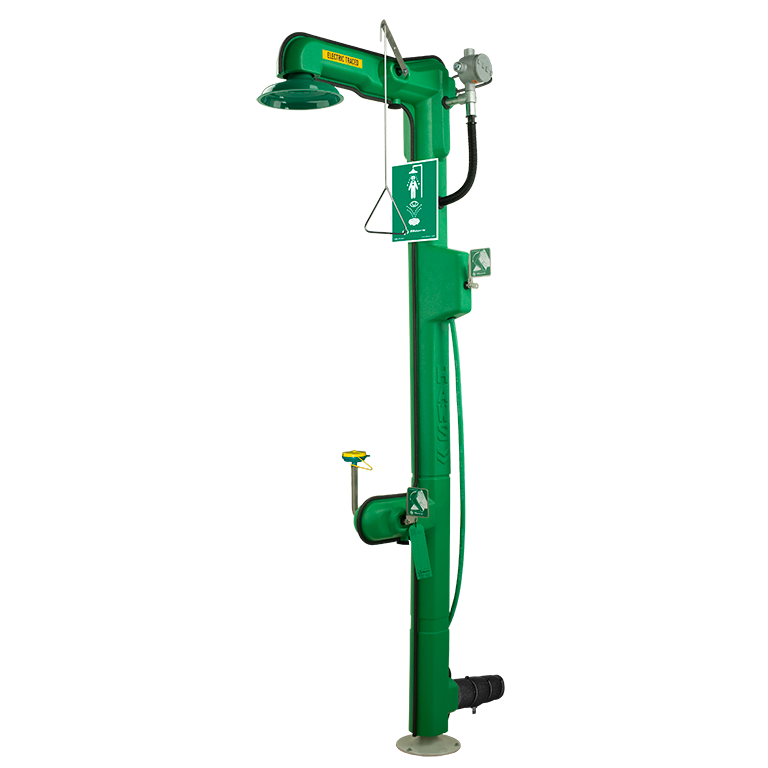

AXION Freeze-Protected Shower and Eye/Face Wash - 8317CTFP
120 VAC cable heated, freeze protected, combination shower and eye/face wash, with top or bottom supply, and with AXION MSR eye/face wash and showerhead.
AXION Model 8317CTFP freeze protected 120 VAC cable heated combination shower and eye/face wash shall include the AXION MSR hydrodynamic designed green ABS plastic 10-5/8" (26.9 cm) showerhead with integral self-regulating 20 gpm flow control, an AXION MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4 gpm flow control, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit shall also include thermostatically controlled electric heat traced cable protected by 3/4" (1.9 cm) insulation and an ABS plastic green jacket that prevents freezing down to ambient temperatures of -30 ° F, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Div 2, Group B, C & D with a 1.25 amp max. (Class I, DIV I is available as a special option)
- Perfect for extreme weather conditions dropping down to -30 ° F (-34.4 ° C)
- Eyewash streams provide Zero Vertical Velocity stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
- Universal design allows for top or bottom water supply
- Requires minimal maintenance and is equipped with test card to record weekly testing
- Reducing installation time, entire unit is pre-built and fully pressure tested
- Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
- Rated Class 1, Div 2, Group B, C & D. Temperature code T6
| Flow Rate | 23.7 GPM |
| Main Finish | Galvanized Steel |
| Hardware Finish | Green |
| Lead Time | 5 |
| Unit of Measure | EA |
| Length(in) | 44 |
| Width (in) | 21 |
| Height (in) | 96 |
| Weight (lbs) | 101 |
| Product Type | Eye Wash & Bottles |
|---|
