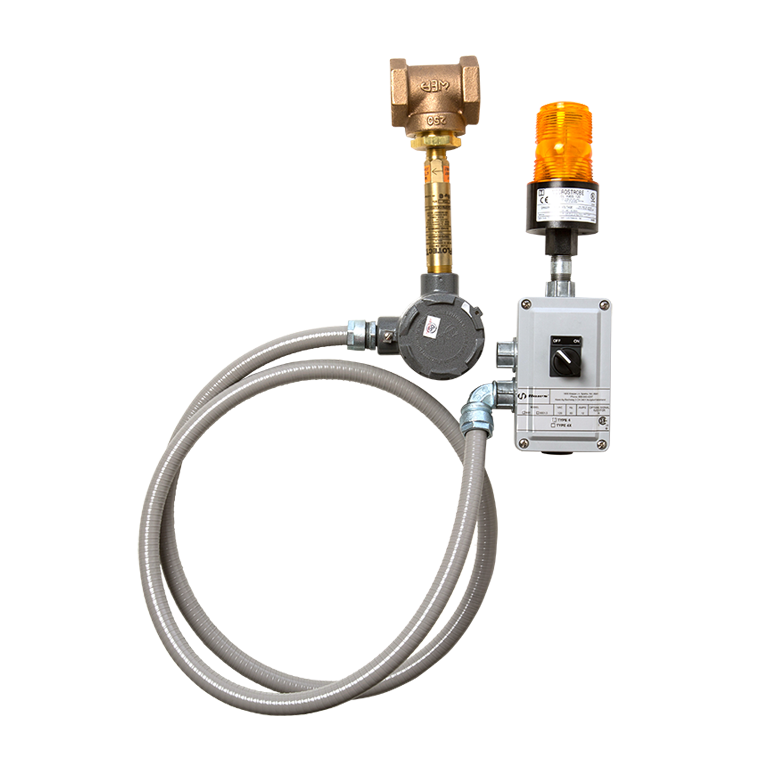

Haws Emergency Alarm System - 9001

Haws Emergency Alarm System - 9001

1-1/4" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by an 1-1/4" double pole, double throw flow switch.

Haws Model 9001 emergency alarm and light system will be operated by a double pole, double throw flow switch, which contains multiple sets of contacts for remote activation, and activates an amber flashing light and buzzer at 90 db, audible at 10 feet (304.8 cm) (buzzer can be silenced during testing). Switch will activate at 2.4 gpm (9.1 L). System can be mounted to pipe or wall. Voltage: 120 VAC, 50 or 60 cycles. Supply: 1-1/4" NPT. Model 9001 is CSA electrical certified, TYPE 4. (Equivalent to Nema 4)

• Brightly flashing amber light and 90 db buzzer brings immediate attention to an emergency situation
• Switch will activate at 2.4 gpm (9.1 L)
• Voltage: 120 VAC, 50 or 60 cycles. Supply: 1-1/4" NPT
• This alarm contains a multiple set of contacts for remote activation alarm sites
• Model 9001 is CSA electrical certified, TYPE 4. (Nema 4 equivalent)
• TYPE 4X is also available. Contact Haws for additional information.

Flow Rate	2.4 gpm
Main Finish
Hardware Finish
Lead Time	5
Unit of Measure	EA
Length(in)	6
Width (in)	12
Height (in)	110
Weight (lbs)	16

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

Operational / Maintenance Manual

Limited Warranty

Product Type	Eye Wash & Bottles
