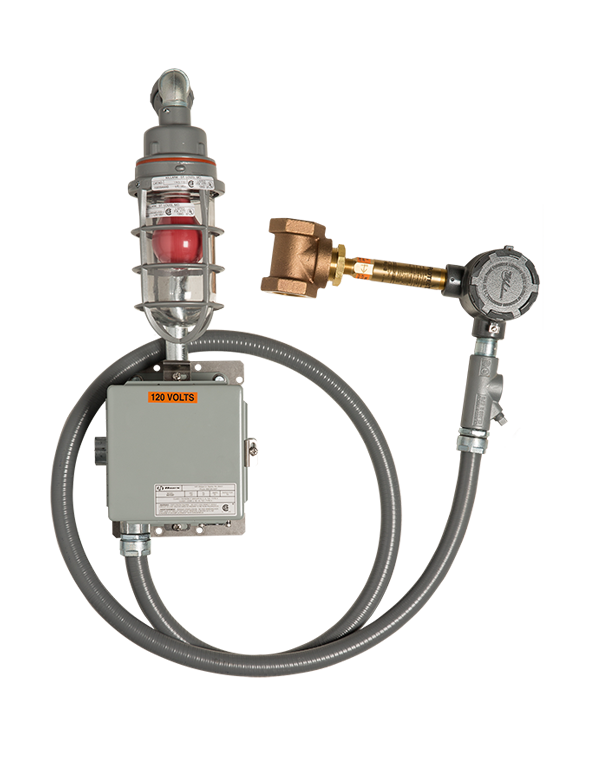

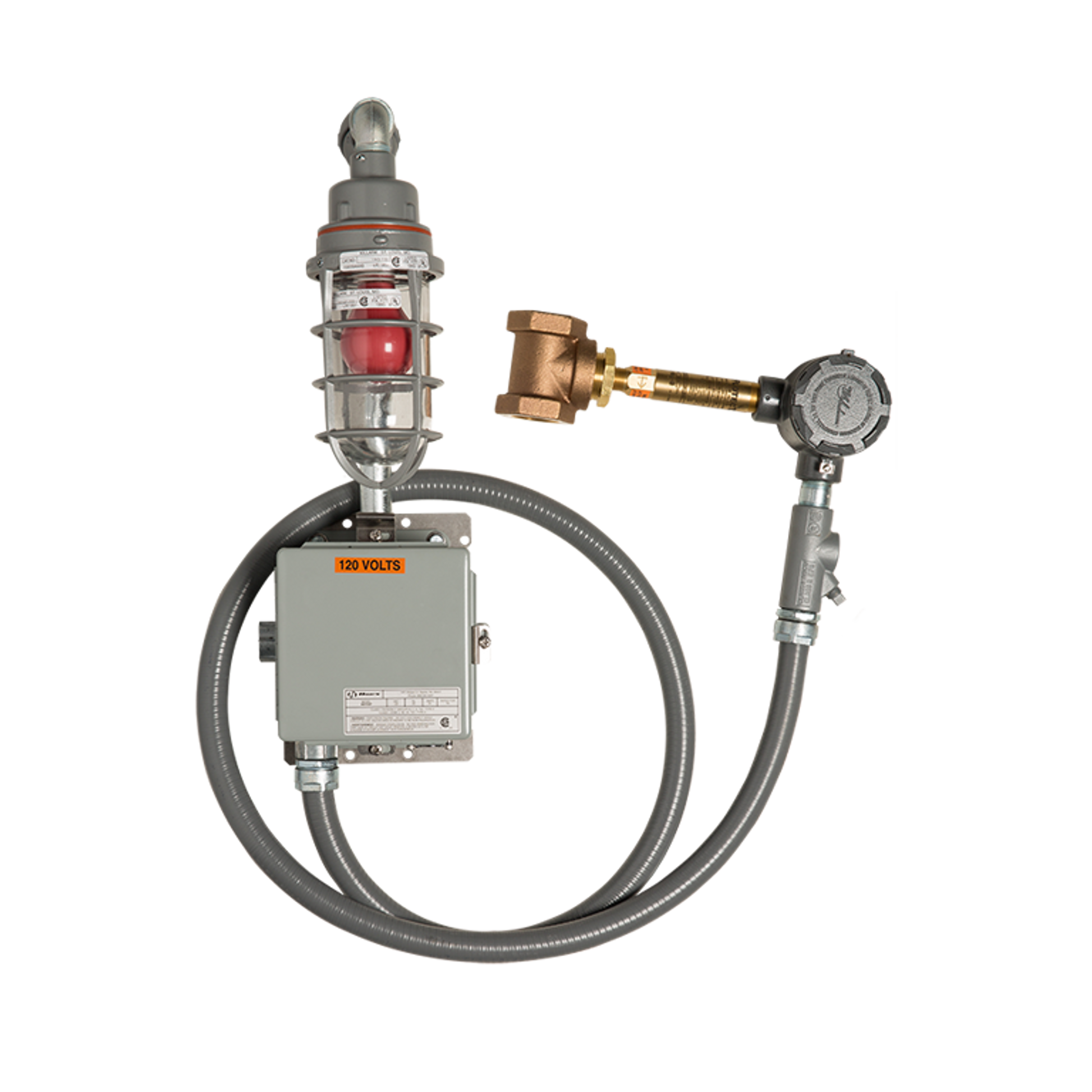

Haws Emergency Alarm System - 9001ExP

120 VAC Class 1, Division 2, Groups B, C, and D emergency alarm system. Buzzer and flashing light are activated by an 1-1/4" NPT double pole, double throw flow switch.

Haws Model 9001ExP Class 1, Division 2, Groups B, C and D emergency alarm and light system features a red flashing light and 90 db at 10 feet (304.8 cm), buzzer that is operated by a double pole, double throw flow switch. Unit is activated when the emergency shower or eyewash is in operation. Switch will activate at 2.4 gpm (9.08 L). System can be mounted to pipe or wall with optional wall bracket that is provided. It is recommended to install unit where a shower or eyewash is in a remote or noisy location where user is unable to summon help. This alarm contains a multiple sets of contacts for remote activation alarm sites. Model is CSA electrical certified, TYPE 4. (Nema 4 equivalent). Temperature code T2C Voltage: 120 VAC, 50 or 60 cycles. Supply: 1-1/4" NPT.

Flow Rate
Main Finish
Hardware Finish
Lead Time	5
Unit of Measure	EA
Length(in)
Width (in)
Height (in)
Weight (lbs)	30

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

Operational / Maintenance Manual

Limited Warranty

Product Type	Eye Wash & Bottles
