Haws Instantaneous Water Heater - TWBS.EW.H

Haws Instantaneous Water Heater - TWBS.EW.H

Prepackaged instantaneous electrical water heater, 480 VAC/3 phase/20 kW, fully engineered and tested system with fail-safe features to produce up to 6 gpm (22.7 L) tempered water for eye washes.

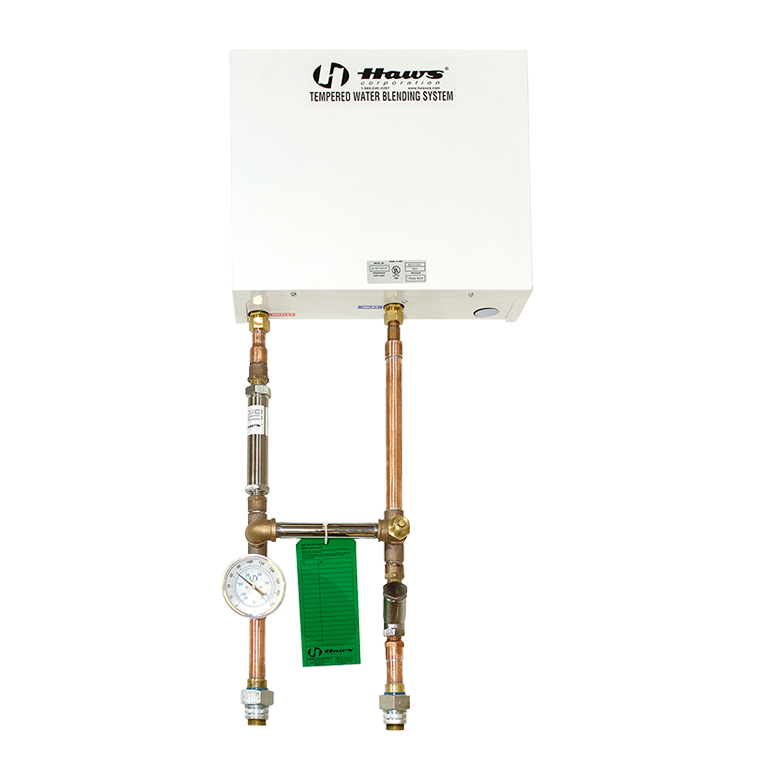

Haws Model TWBS.EW.H on-demand, prepackaged, fully engineered and tested tempering system to provide tempered water instantaneously. System is designed to increase cold water temperature by a minimum of 34 ° F (19 ° C) at 4 gpm (15.1 L) flow and 68 ° F (38 ° C) at 2.0 gpm (7.5 L); thus it is suitable for single eyewash application. Outlet water temperature is factory set at 80 ° F (26 ° C). System consists of a UL listed 20 KW electrical instantaneous water heater, a hot shutoff valve, a bypass valve, an in-line 50 x 50 mesh filter, and an outlet temperature gauge. Requires 45 - 90 psi (3 - 6 ATM) flowing pressure. Inlet and Outlet: 1/2" IPS. Electrical Supply: 480 VAC, 3-phase, 3 wire and ground. 24 Amp per Phase. FOR INDOOR USE ONLY.

• It is ideal for areas where supply water temperatures fall below 60 ° F (15 ° C) while hot water is not present
• System consists of an 20 KW electrical instantaneous water heater, a hot shutoff valve, a bypass valve, an in-line 50 x 50 mesh filter, and an outlet temperature gauge
• Requires 45 - 90 psi (3 - 6 ATM) flowing pressure
• Inlet and Outlet: 1/2" IPS.
• Electrical Supply: 480 VAC, 3-phase, 3 wire and ground. 24 amp per phase (optional 208/240 3-phase available - ask for quote).
• UL listed for indoor use only.

Flow Rate	4 gpm
Main Finish
Hardware Finish
Lead Time	5
Unit of Measure	EA
Length(in)	6
Width (in)	12
Height (in)	35
Weight (lbs)	27

Spec Sheet

Installation Drawing

Operational / Maintenance Manual

Limited Warranty

Product Type	Eye Wash & Bottles
