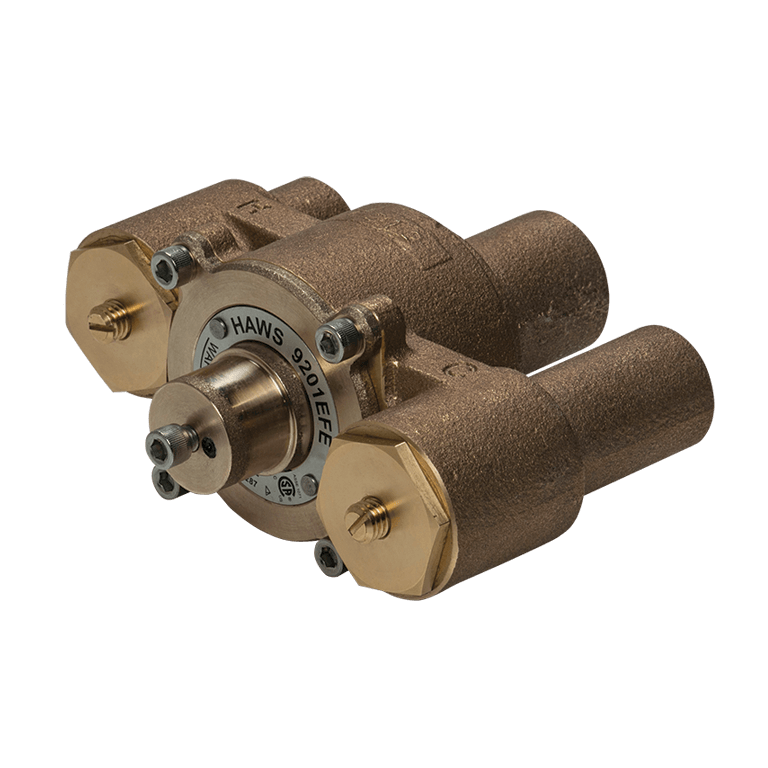

Haws Thermostatic Mixing Valve - 9201EFE

Haws Thermostatic Mixing Valve - 9201EFE

AXION Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for a single emergency eye/face wash, with a flow rate of 12 gpm (38.8 L).

Haws Model 9201EFE (patent pending) is a thermostatic mixing valve that mixes hot and cold water to supply tempered water of up to 12 gpm (45.4 L) for emergency eyewash fixtures. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 10 gpm (37.8 L). The improved brass design with a one piece casting uses internal check stops, over-sized valve seats, a shuttle design that eliminates valve binding, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85 ° F (29 ° C). Maximum operating pressure: 125 psi (8.62 Bar). Temperature adjustment range 60 - 90 ° F (16 - 35 ° C). Min/max inlet hot water temperature: 120 °/180 ° F (49 °/82 ° C), with recommended inlet temperature: 140 ° F (60 ° C). Min/max inlet cold water temperature: 40 °/70 ° (4.4 °/21.1 ° C). Inlet 1/2" NPT(F). Outlet 3/4" NPT(F).

• A flow rate of 1 to 12 gpm (3.8 to 45.4 L) for better temperature control across the operating range
• AXION's superior design and technology provide a complete safety solution for increased victim comfort.
• Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (83% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• A new and efficient shuttle design eliminates valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature is factory set to 85 ° F (29 ° C).

Flow Rate	12 gpm
Main Finish	Brass
Hardware Finish	Brass
Lead Time	5
Unit of Measure	EA
Length(in)	6
Width (in)	3
Height (in)	5
Weight (lbs)	7

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

MasterSpec

Limited Warranty

Product Type	Eye Wash & Bottles
