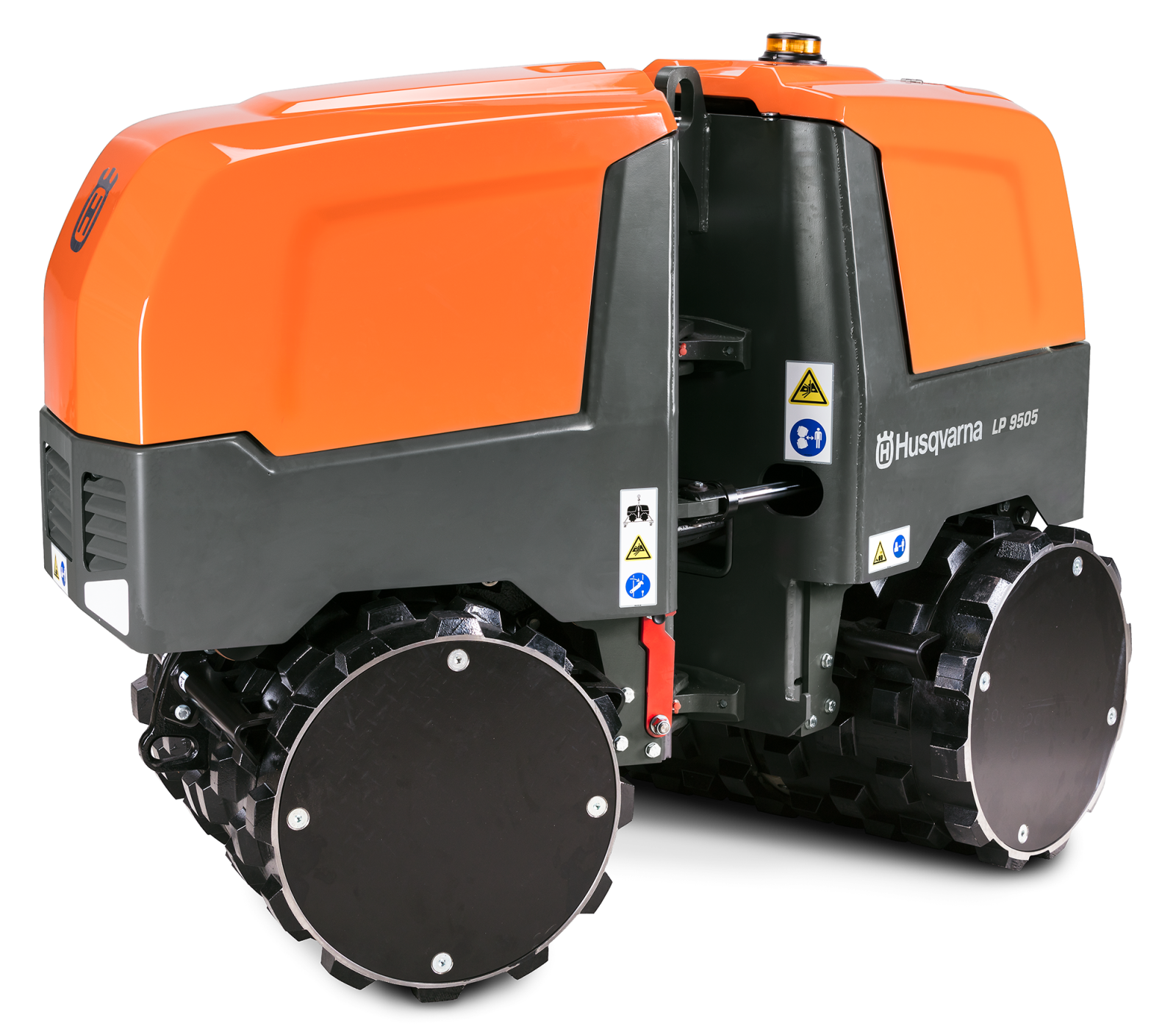

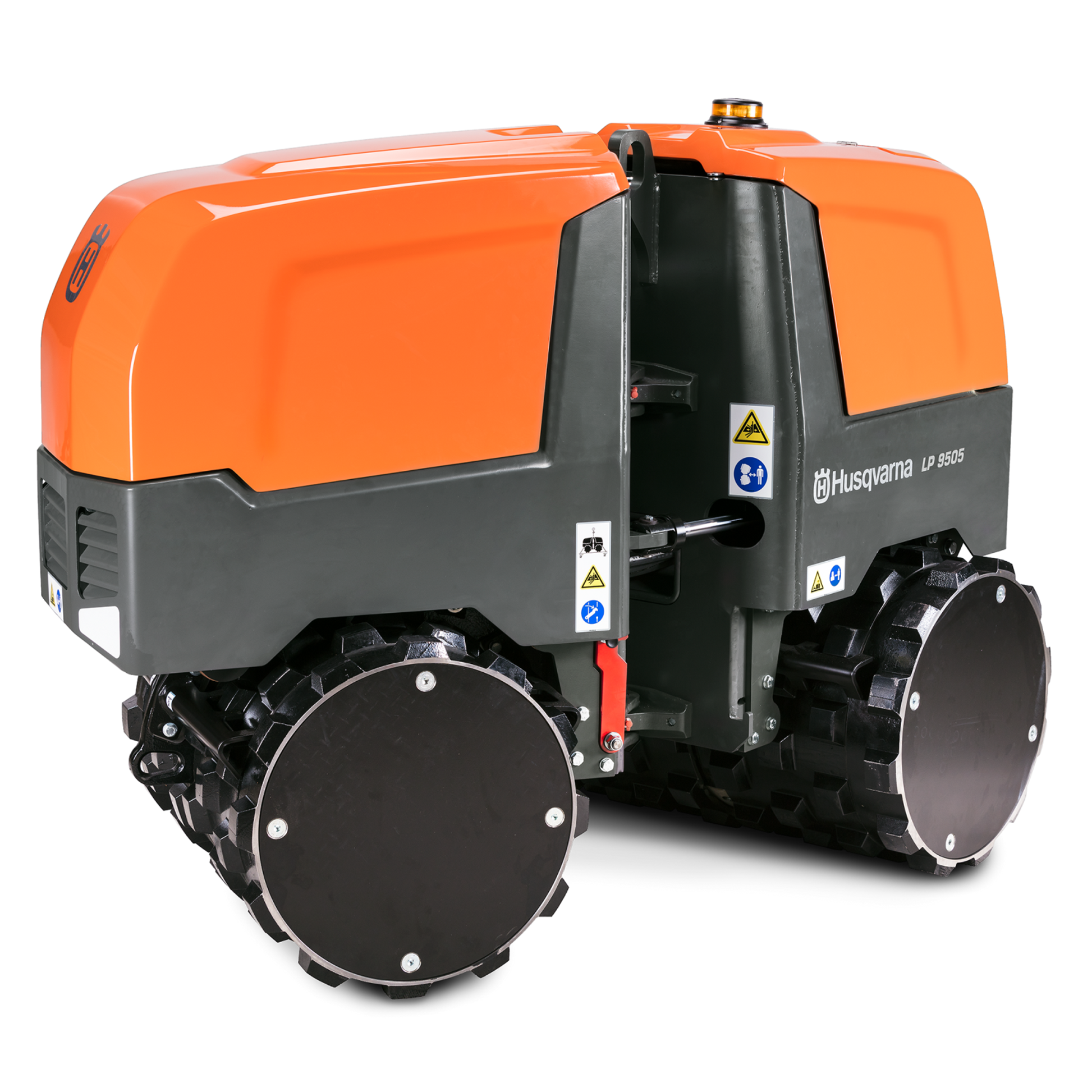

Trench Compactor LP 9505 - 850 mm Kubota Articulated Com – 967950801
TRENCH COMPACTOR LP 9505 | 850 mm | KUBOTA | ARTICULATED COM
The highly productive Husqvarna LP 9505 articulated trench compactor delivers a smooth, compacted surface, which doesn't dig up soil when turning. Due to the high operating weight and ultimate traction, it is suitable for all kinds of soils (dry or wet) but especially suited for cohesive materials like clay and silt. The fuel-efficient engine provides class-leading power for a whole day of uninterrupted work and the radio remote control offers great flexibility, better ergonomics and safer working conditions. Servicing is quick and easy with all service points clearly marked and easily accessed under the hoods.
- Flexibility - Radio remote control technology allows the operator to choose the best position of where to stand, providing for better ergonomics and safer working conditions. This lets you focus on the final result.
- Excellent traction - High and wide drum pads increase traction on slopes and steep gradients as well as in wet soils.
- Easy to operate - Remote control has a large informative display for guidance and trouble shooting.
- Always ready - The remote control comes with two batteries, one for use and the other to charge in the on-board charger. This ensures you never run out of power.
- Optimal static compaction - Thanks to the heavy weight of the machine.
- Serviceability - Easy access to all service points and most consumable parts are clearly marked, like filters. Hydraulic hoses are also clearly marked.
- Covered drum ends - Keep the dirt out of the wearable parts to increase durability, and the covers enable the machine to slide against the trench walls instead of grinding them.
- Easy loading and transporting - One single lifting point with a large lifting eye. The articulation joint is secured with a foldable transport lock. There are additional eyelets in front and back for hauling.
- Powerful and fuel efficient - The Kubota D1105 diesel engine provides class-leading power. Low fuel consumption combined with a large fuel tank enables you to run a full workday.
- Stable machine - Thanks to the width and the low centre of gravity.
| Article ID | 967950801 |
| Category | Husqvarna/Compactors/Compaction Rollers/ |
| Article gross weight | 1750000 g |
| Article gross weight (Calc) | 3858.09 lbs |
| Centrifugal force (lbf) | 16186 lbf |
| Centrifugal force (kN) | 72 kN |
| Engine Power (As rated by the engine manufacturer) (HP) | 24 hp |
| Engine Power (As rated by the engine manufacturer) (kW) | 18 kW |
| Exhaust emissions (COâ‚‚ EU V) | 1018 g/kWh |
| Motor/engine model | D1105 |
| Packaging height (mm) | 1585 mm |
| Packaging height (In) | 62.402 in |
| Packaging length (mm) | 1950 mm |
| Packaging length (in) | 76.772 in |
| Packaging width (mm) | 900 mm |
| Packaging width (in) | 35.433 in |
| Power source | Diesel |
| Power/fuel type | Diesel |
| Product size height (in) | 53.9 in |
| Product size height (mm) | 1369 mm |
| Product size length (in) | 73.07 in |
| Product size length (mm) | 1856 mm |
| Product size width (mm) | 850 mm |
| Product size width (in) | 33.46 in |
| Sound power level - guaranteed (LWA) | 106 dB(A) |
| Sound pressure level at operators ear (LpA) | 83 dB(A) |
| Speed (m/min) | 24 m/min |
| Speed (ft/min) | 79 ft/min |
| Starter | Electric |
| Weight | 3704 lbs |
| Weight (complete product w/o side packed articles) | 1680 kg |
MFG Part #: 967950801
UPC #: 7392930284302
| Product Type | Husqvarna Parts & Accessories |
|---|
