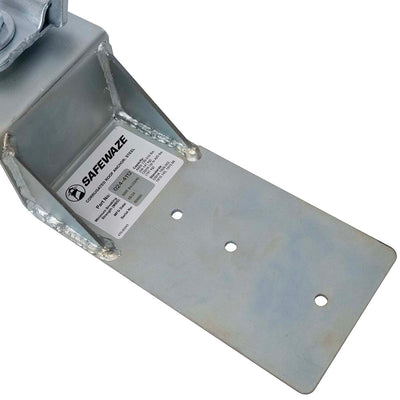

Safewaze Corrugated Roof Anchor: Steel - 024-4112

Safewaze Corrugated Roof Anchor: Steel - 024-4112

The Safewaze Corrugated Roof Anchor is a zinc-plated steel anchorage solution designed for corrugated roofing applications. It features a single swivel D-ring and a 5,000 lb. strength rating, helping support compliant fall protection setups on metal roofs. With compact dimensions and clear installation requirements, it is built for practical use on job sites where secure roof anchorage is needed.

Key Features

• Zinc-plated steel construction for corrugated roof applications

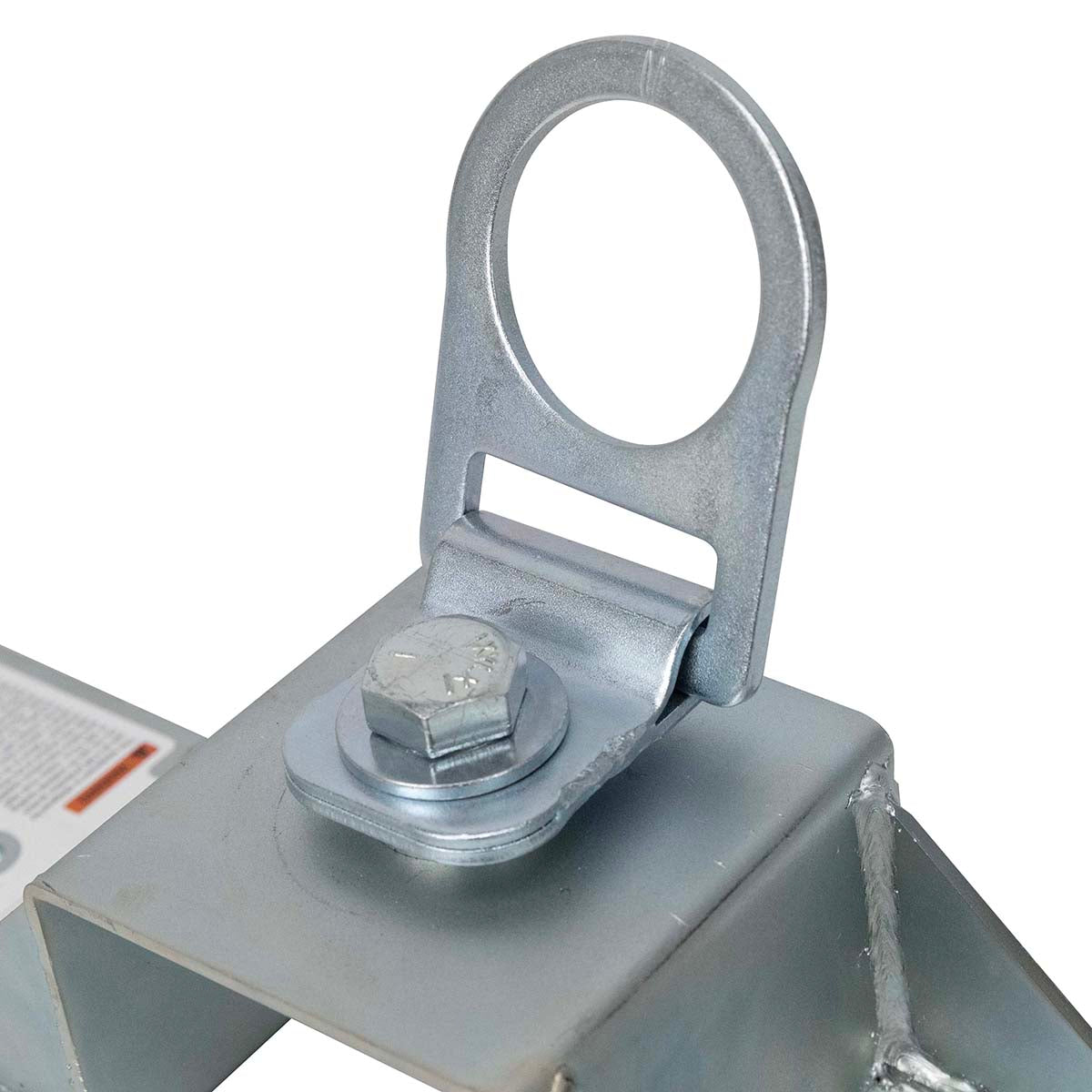

• 1 swivel D-ring for tie-off connection
• 5,000 lbs. (22 kN) strength rating
• Compatible with ANSI weight capacity of 130-310 lbs. (59-141 kg)
• OSHA weight capacity up to 420 lbs. (191 kg)
• Requires (6) #12 or #14 metal-to-metal self-drill HWH screws with integrated EPDM washers

Ideal For

• Fall protection on corrugated metal roofs
• Roofing contractors and maintenance crews
• Applications requiring a permanent or semi-permanent roof anchor point
• Use in environments governed by OSHA 1926.502, 1910.140, and 1910.66

Specifications

Product Type	Corrugated Roof Anchor
Material	Zinc-plated steel
Dimensions	20.1"x 4"x 2.9"(510 mm x 101.5 mm x 74 mm)
D-Ring	1 swivel D-ring
Strength Rating	5,000 lbs. (22 kN)
ANSI Weight Capacity	130-310 lbs. (59-141 kg)
OSHA Weight Capacity	Up to 420 lbs. (191 kg)
Standards	1926.502, 1910.140, 1910.66
Installation Hardware	(6) #12 or #14 metal-to-metal self-drill HWH screws with integrated EPDM washers
Installation Notes	Screw length depends on roof gauge and purlin thickness; anchor depth of 1/8”; minimum embedment of 1/4"into purlin required

Built for dependable roof anchorage where secure installation and code-aware performance matter.

MFG Part #: 024-4112

UPC: 732388044344

Product Type	Fall Protection Anchor
