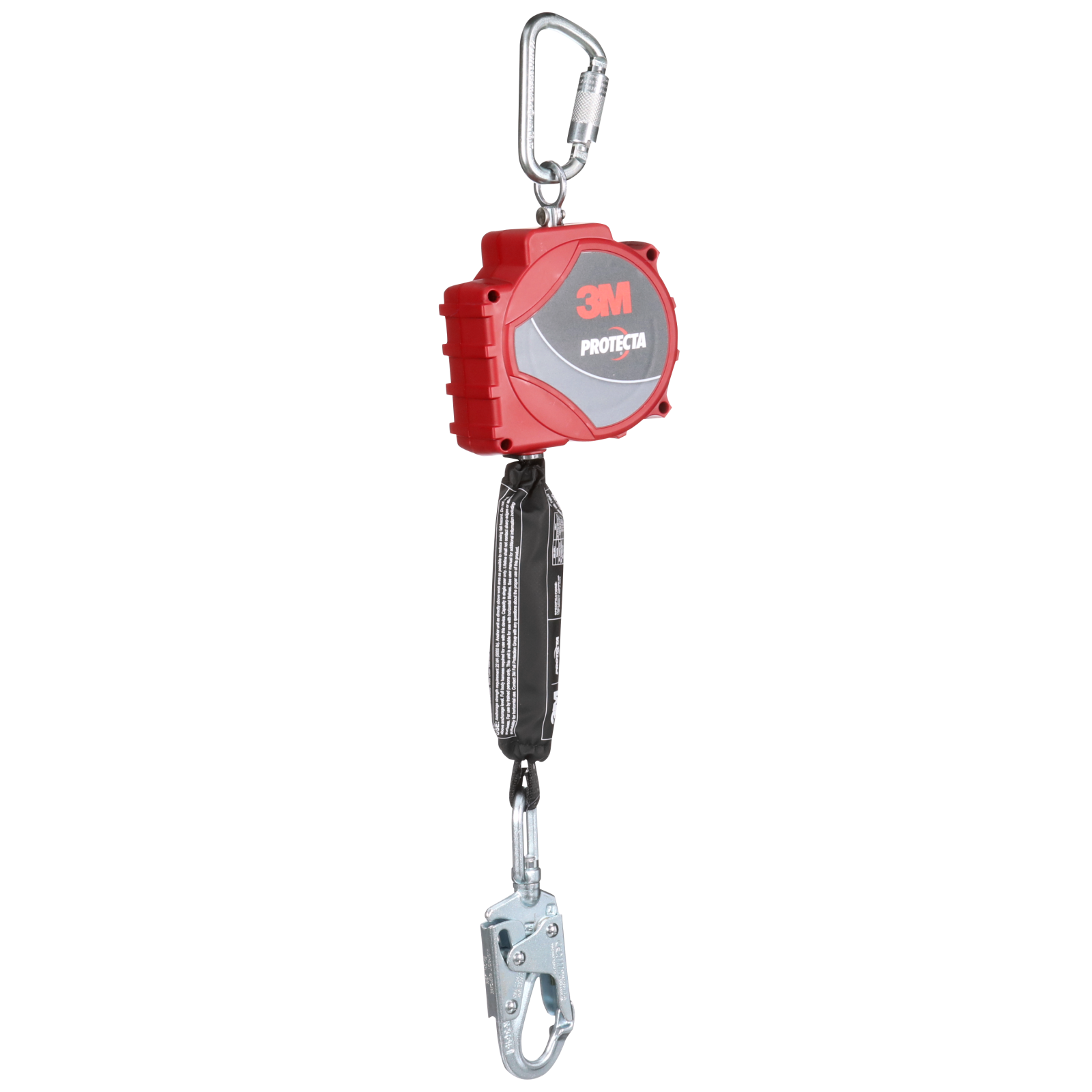

3M Protecta 20 ft. Web Self-Retracting Lifeline w/Carabiner - Steel Swivel Snap Hook - 3100516

OSHA Compliant Self-Retracting Lifeline w/Carabiner - Steel Swivel Snap Hook - 20 ft.

The 3M Protecta Self-Retracting Lifeline (SRL) is durable yet lightweight and built to last while providing an economical fall protection solution without compromising performance or safety. The 3M Protecta Self-Retracting Lifeline is available in multiple lifeline lengths and materials featuring a design to help ensure longevity. The 3M Protecta Self-Retracting Lifeline is designed with the worker in mind, featuring a stackable housing design, with web or steel cable lifeline and a built-in swiveling anchorage point for added comfort and ease of use. 3M Protecta Self-Retracting Lifelines are available in SRL, personal SRL, Leading Edge SRL, and Retrieval SRL configurations.

The 3M Protecta Self-Retracting Lifeline (SRL) extends and retracts with the user as they perform their work task. Should a fall occur, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user to safe levels. In addition, tension is always kept on the lifeline, which helps reduce dragging, snagging, trips, and falls. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or for connection directly to harness, there are several models to choose from to suit a variety of applications. 3M Protecta Self-Retracting Lifeline is equipped with an integrated carrying handle to assist in transporting the SRL to job sites.

• Swiveling anchorage connector loop and carabiner
• Aluminum or thermoplastic housing design
• Self-locking snap hook on lifeline
• Compact, lightweight design
• Cable lengths of 20 ft or greater feature stackable housing design
• Quick activating speed-sensing locking system
• Features impact-indicating external energy absorber (for models with external shock pack)
• Corrosion resistant components
• Available in multiple configurations, lifeline lengths, and material types
• Emergency retrieval system available on some models

Replaces 3M Part # 3100432

Anchor Connection Type	Carabiner
Anchor Hook Material	Zinc Plated Steel
Anchor Material	Zinc Plated Steel
ANSI Class Level	Non Pertinent
Color Family	Red
Harness Connection Hook Material	Non Pertinent
Harness Connection Type	Non Pertinent
Housing Material	Nylon Thermoplastic
Housing Type	Thermoplastic
Install Type	Portable & Removable
Leg Count	Single-Leg
Lifeline Hook Material	Zinc Plated Steel
Lifeline Length (Imperial)	20.0 ft
Lifeline Length (Metric)	6.09 m
Lifeline Material	Web
Maximum Number of Users	One
Mounting Type	Overhead Anchor Point
Overall Length (Imperial)	20.0 ft
Overall Length (Metric)	6.09 m
Product Color	Red
Product Number	3100516
Product Type	Self Retracting Lifeline - Web
Recommended Application	Remediation
Recommended Industry	Mining
Specifications Met	29 CFR OSHA 1926.502
Style	Single Leg
Weight Capacity (Imperial)	310.0 lb.
Weight Capacity (Metric)	141.0 kg

3M ID: 7100319948

3M Part #: 3100516

UPC/GTIN #: 648250241851

Product Type	Fall Protection Retractables
