Xtirpa

Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL

(No reviews yet) Write a Review
SKU:
IN-2237+10158178+IN-2404
Availability:
Call or Email for Availability!
Shipping:
Calculated at Checkout
  • Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL
  • Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL
  • Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL
  • Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL
Now: $8,845.78 - $9,854.64

Description

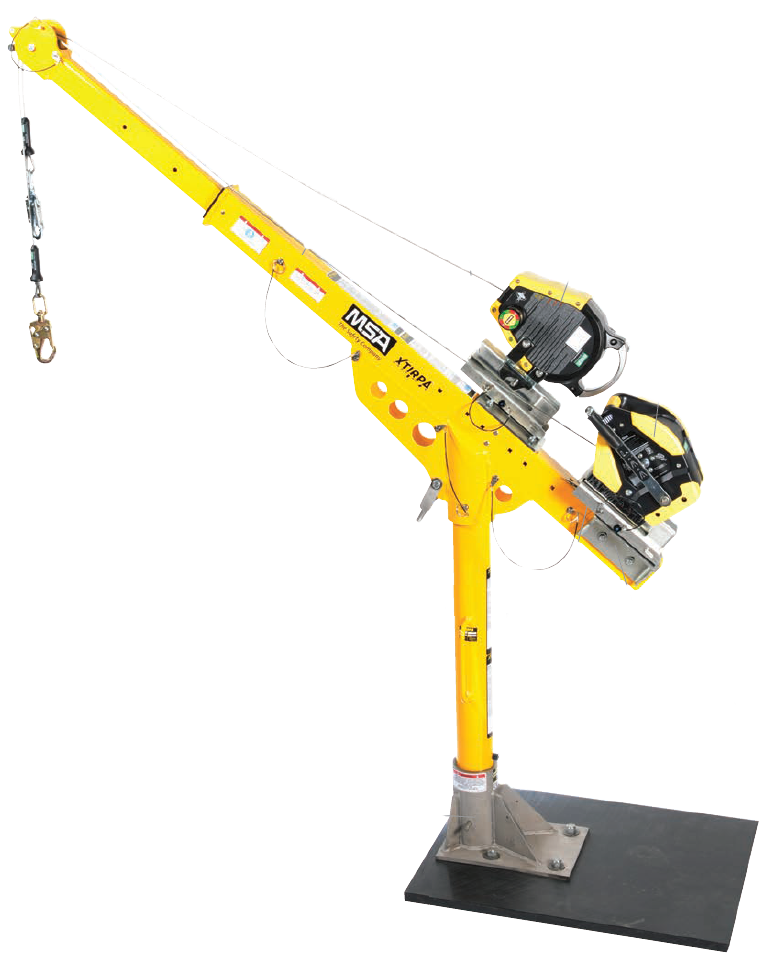

Xtirpa™ 30"-48" Reach Adapter Base Complete Confined Space Entry System w/ MSA Workman 50' SRL

Adapter Base Systems are fixed anchorage connectors used for vertical entry into confined spaces. The adapter base is permanently affixed to an existing structure. The many different adapter base options can accommodate any work environment. This system is designed for work areas that require regular setup and teardown. Use for confined space vertical entry and fall protection when fixed base is needed.

Choose your own set up based on what you need!

Ordering Information

The base price includes the

  • (a) Davit Arm IN-2237
  • (b) 4" Mast with 42" Height IN-2240 OR 4" Mast with 60"Height IN-2313 [+$46]
  • (c) Rescuer SRL such as 10158178 and corresponding attachment bracket such as IN-2404

You select the Type of the

  • (d) Optional 65' personnel /material winch & bracket IN-2404
  • (e) Adapter Base Style

 A. XTIRPA™ 30"-48" REACH DAVIT ARM IN-2237 [Included]

30-48" Extendable Davit Arm for fall protection and retrieval facilitates access to confined spaces. Use with masts IN-2240 or IN-2313. Pinholes located at 30", 36" and 48" to accommodate various reach lengths. Equipped with 5000-lb. anchor point. For extra winch configurations, use A2237-06.

 B. XTIRPA™ 4" MAST FOR DAVIT ARM - 42" or 60"

4" mast for confined space fall protection and retrieval to be used in conjunction with 30-48" extendable davit arm IN-2237. Available in 42" High and 60" High.

1) IN-2240 42" Height Mast for Davit Arm
2) IN-2313 60" Height Mast for Davit Arm

C. MSA Workman 50' Rescuer & Mounting Bracket - 10158178 & IN-2404 [Included]

    • Fast, Easy and Intuitive fall protection with an integral bi-directional retrival capability.
    • Stainless Steel Cable, 50'
    • Includes Mounting Bracket # IN-2404 for MSA Workman and Workman Winch

 D. *Optional* MSA Workman Personnel/Materials Winch, Mounting Bracket & Adapter +$2,500.00

-10147301 - 65' Workman Winch
-IN-2404 - Mounting Bracket
-A2237-06 - Removable Winch Adapter

    • Maximum work load of 400 lbs for personnel, 620 lbs for materials.
    • Includes integral RFID technology and self-locking swivel 36C snaphook.
    • Stainless Steel Cable, 65'
    • Includes Mounting Bracket # IN-2404 for MSA Workman and Workman Winch

 E. Adapter Base Style

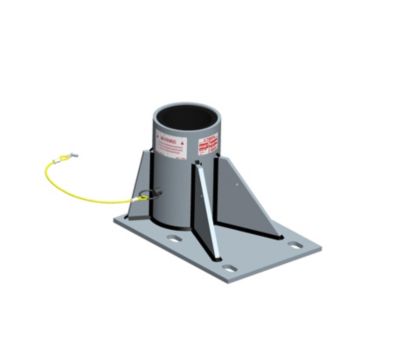

 4" Floor Adapter Base

Floor adapter attaches to concrete or steel structure. For use with mast IN-2240 or IN-2313 and davit arm IN-2237.
Bolts not included.

P/N IN-2238 - 304 stainless steel

P/N IN-2302 - Zinc-plated

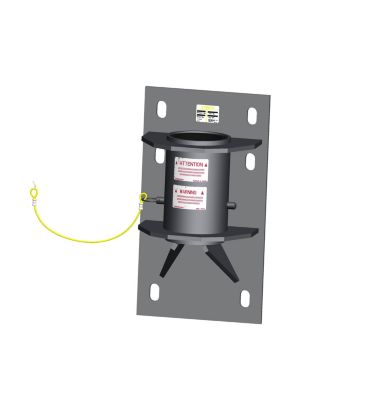

 4" Mural Adapter Base

Mural adapter installed flush to concrete for minimal intrusion in work space. Use with mast IN-2240 or IN-2313 and davit arm IN-2237.
Bolts not included.

P/N IN-2253 - 304 stainless steel

P/N IN-2303 - Zinc-plated

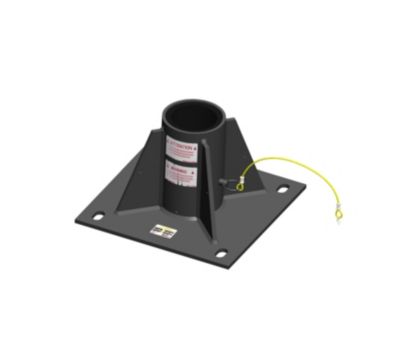

 4"  Center Mount Floor Adapter Base

Center mount floor adapter attaches to concrete or steel structure. Use with mast IN-2240 or IN-2313 and davit arm IN-2237. Ideal for 360° rotation.
Bolts not included.

P/N IN-2254 - 304 stainless steel

P/N IN-2304 - Zinc-plated

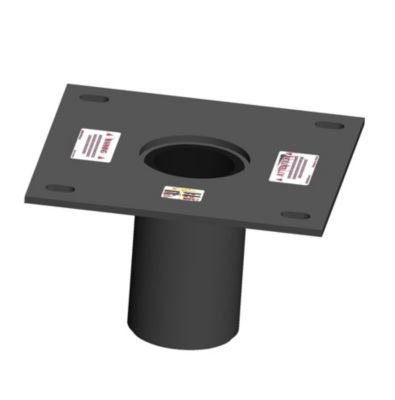

 4" Flush Floor Adapter Base

Flush floor adapter attaches to concrete or steel. May help reduce trip hazards when not in use. Use with mast IN-2240 or IN-2313 and davit arm IN-2237.
Bolts not included.

P/N IN-2266 - 304 stainless steel

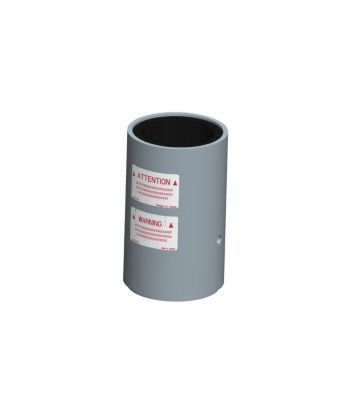

 4" Sleeve Adapter Base

Sleeve adapter provides flush mount with concrete floor. For use with mast IN-2240 or IN-2313 and davit arm IN-2237.
5.75" diameter hole needed.

P/N IN-2255 - 304 stainless steel
