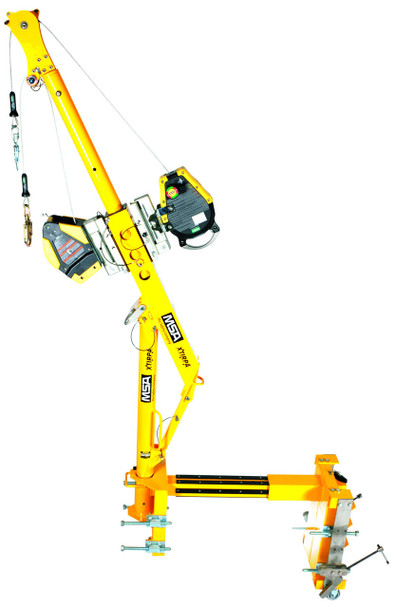

Xtirpa™ Adjustable Wall Adapter Complete Confined Space Entry System w/ MSA Workman 50' SRL

(No reviews yet) Write a Review
SKU:
IN-2210+IN-2003+IN-2008+10158178+IN-2404
mpn
IN-2075
Condition:
New
Shipping:
Calculated at Checkout
On Sale
  • Xtirpa™ Adjustable Wall Adapter Complete Confined Space Entry System w/ MSA Workman 50' SRL
  • Xtirpa™ Adjustable Wall Adapter Complete Confined Space Entry System w/ MSA Workman 50' SRL
  • MSA Workman Rescuer [10158178]
  • MSA Workman Personnel/Material Winch [10147301]
Now: $8,995.00
Was: $19,853.29

Description

Adjustable Wall Adapter Systems are portable anchorage connectors used for vertical entry into confined spaces. The Adjustable Wall Adapters range from 6" to 45" to accommodate a wide range of confined space applications. This system is designed for frequent setup of confined space equipment.


Use for confined space vertical entry and fall protection when portable base is needed.

Choose your own set up based on what you need!

Ordering Information

The base price includes the

  • (a) Davit Arm IN-2210
  • (b) 3" Dia. Mast 45" Height IN-2003 (Extensions Available To Upgrade)
  • (c) Adjustable 6"-15.75" Wall Adapter IN-2008 (Option to Upgrade)
  • (d) Rescuer SRL such as 10158178 and corresponding attachment bracket such as IN-2404

Optional Upgrades:

  • (e) Mast Height Upgrade (Optional)
  • (e) Optional 65' personnel /material winch & bracket IN-2404 (Optional)

A. XTIRPA™ 24" DAVIT ARM IN-2210 [Included]

24 inch davit arm with secondary block adapter for fall protection & retrieval facilitates access to confined spaces. Use with 24 inch mast IN-2003 and appropriate Xtirpa™ bases/systems or manhole guards IN-2108 or IN-2324. Equipped with 5,000 lb. anchor point.

B. XTIRPA™ 3" DAVIT ARM MAST IN-2003 [Included]

Mast for confined space fall protection and retrieval to be used in conjunction with the fall protection and retrieval 24 inch davit arm IN-2210 and any Xtirpa™ 24 inch davit arm base or system.  55 inch height. Unit weight 22 lbs.

C. Adjustable 6"-15.75" Wall Adapter IN-2008 [Upgrades Optional]

Adjustable wall adapters range from 6 to 45". Adapter comes standard with A2008-12 (tightening rod with tempered steel single point). Tightening rods with different pad configurations are also available. Bolts included. Selecting a different part number will change pricing accordingly

  • 6"–15.75" IN-2008
  • 12"–24" IN-2168
  • 12"–31.5" IN-2075
  • 24"–45" IN-2125
  • 12"–30" IN-2251

D. MSA Workman 50' Rescuer & Adapter Bracket - 10158178 & IN-2404 [Included]

MSA Workman 50' Rescuer
-Fast, Easy and Intuitive fall protection with an integral bi-directional retrieval capability.
-Stainless Steel Cable, 50'
-Includes Mounting Bracket # IN-2404 for MSA Workman and Workman Winch.

E. XTIRPA™ 3" Davit Arm Mast Height Extension [Optional]

Mast extension is constructed of painted steel and provides additional height when used with any mast base.

  • 15" Extension IN-2044
  • 18" Extension IN-2109

F. MSA Workman Personnel/Materials Winch & Adapter Bracket - P/N 10147301 & IN-2404 [Optional] +$1450.00

MSA Workman Personnel & Materials Winch
-Maximum work load of 400 lbs for personnel, 620 lbs for materials.
-Includes integral RFID technology and self-locking swivel 36C snaphook.
-Stainless Steel Cable, 65'
-Includes Mounting Bracket # IN-2404 for MSA Workman and Workman Winch

View AllClose

Additional Information

Type:
Complete Kit
